WY-AW

Product Details

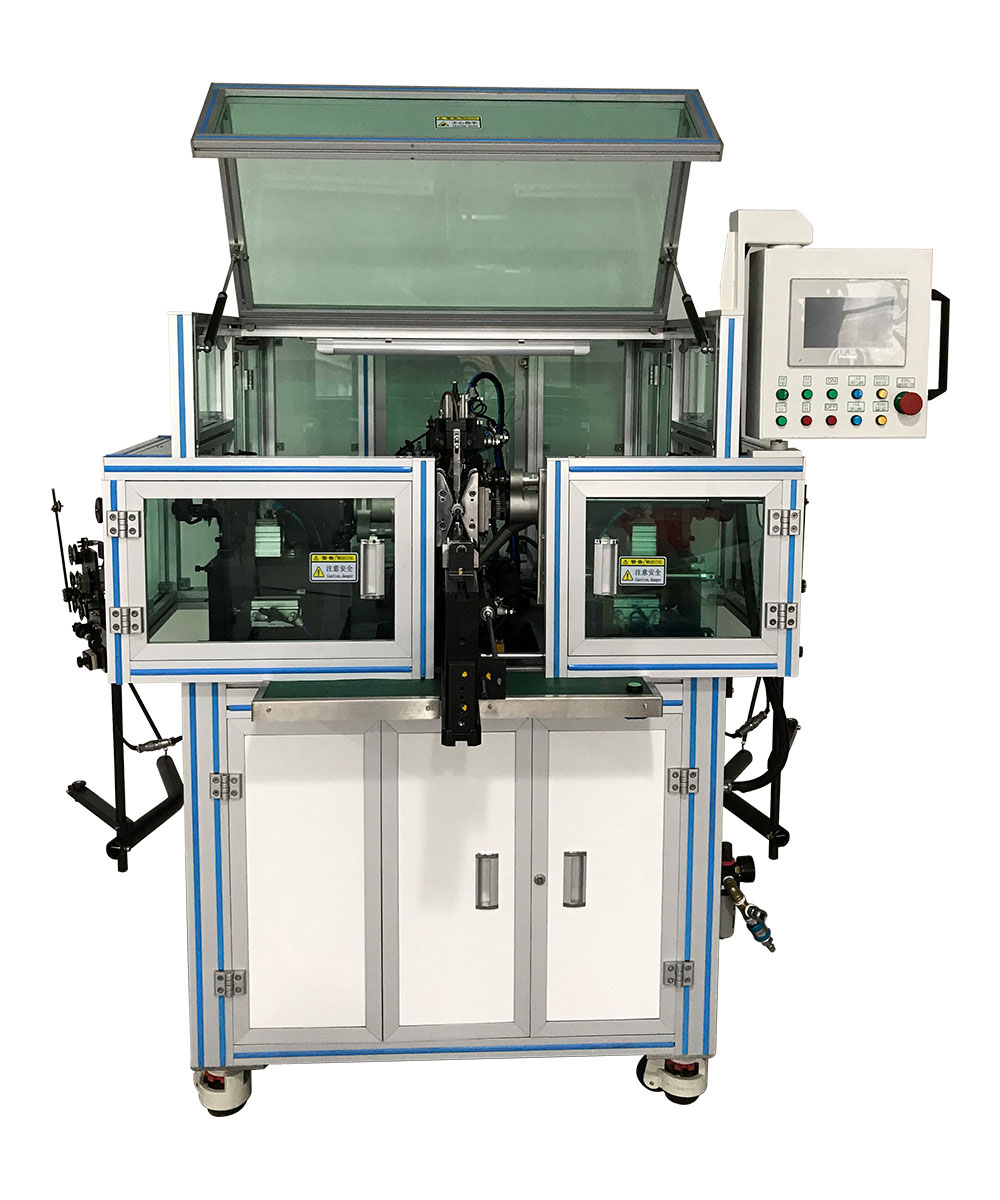

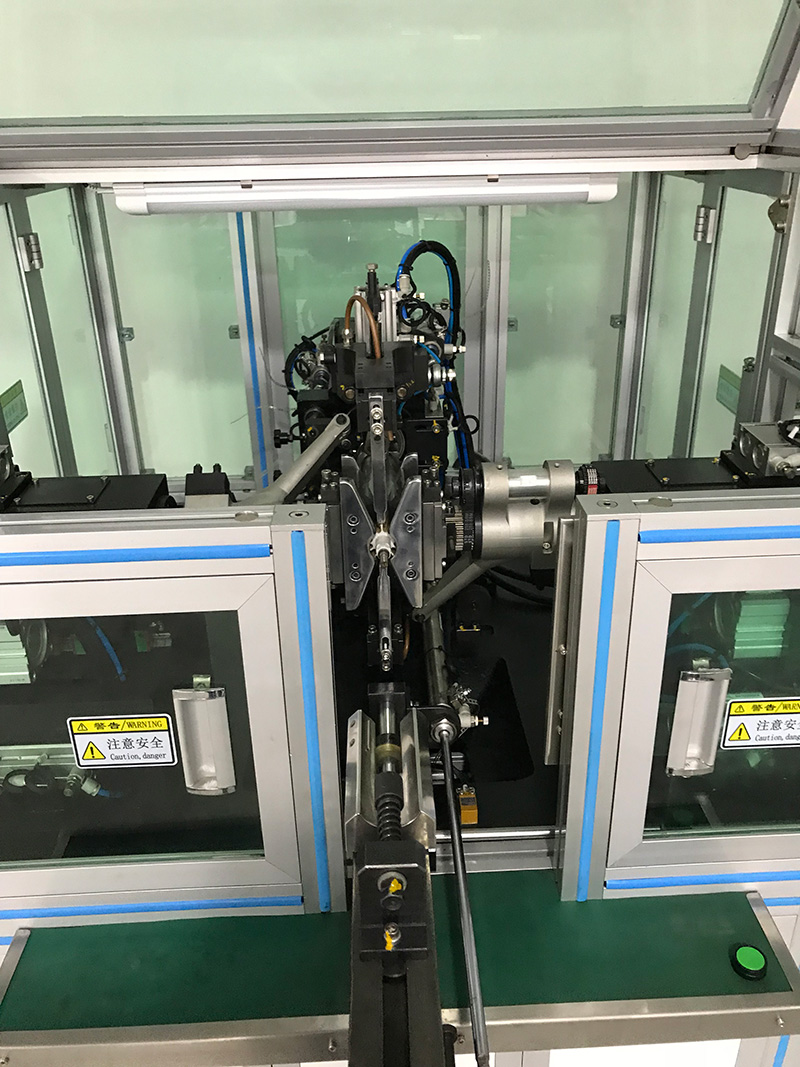

Description: Double Flying Armature Winding  Machine Model No.: WY-AW


1. Performance and characteristics

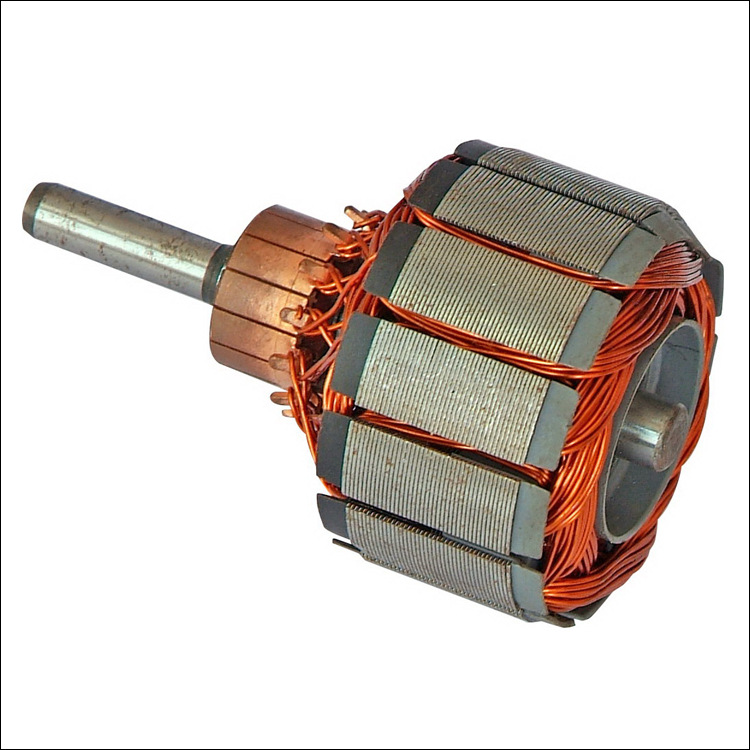

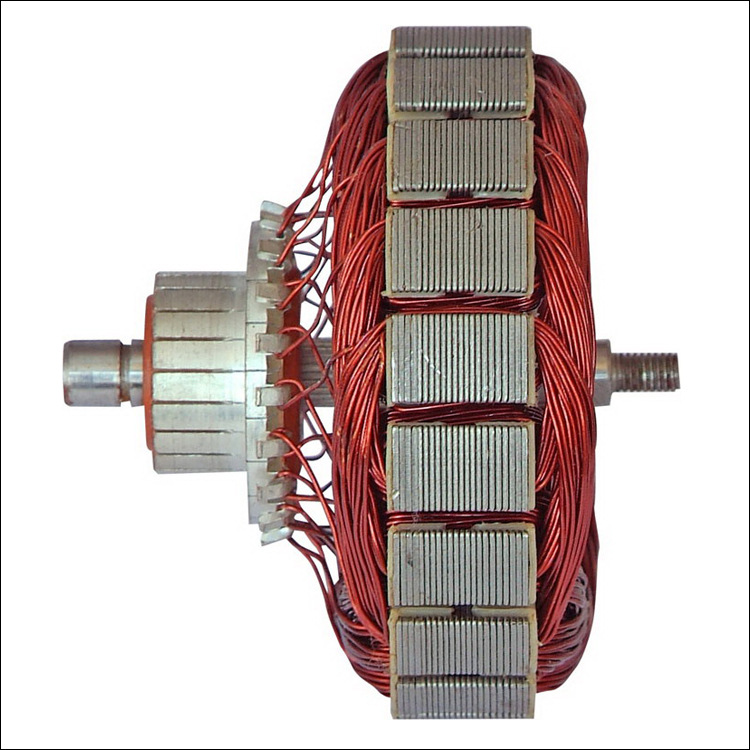

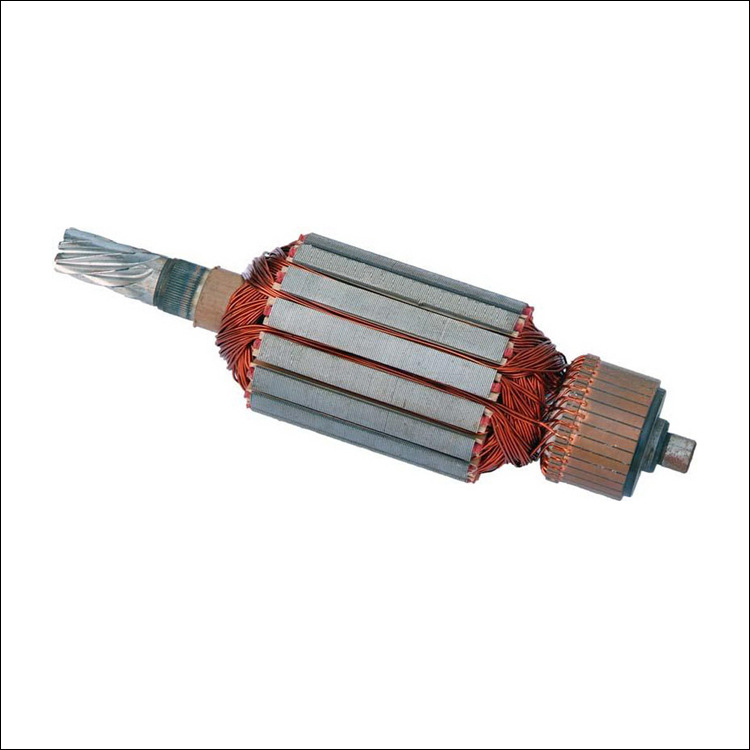

V This machine is used for winding equipment of various micromotor rotors (chute, straight groove, groove type commutator).

V Automatically finish winding, slotting, clipping and other functions.

V can quickly change winding die, fixture.

V suitable for a variety of different hook winding methods, such as double winding, etc.

V adopts 3 sets of Japanese Panasonic servo motor (1×0.75KW, 2×1.5KW), PLC adopts Japan Omron CP1H series PLC, logic operation relations and stability, safety and reliability, with Schneider display and electronic control tension controller, so that the winding process can be set flexibly. Has a variety of operation, fault display, sound and light alarm functions.

V Pneumatic components: SMC imported from Japan, Taiwan brand.

V Automatic production equipment for RP20 automatic line operation.

2. Technical parameters:

1. Machine dimensions (LXWXH) : 1800*1900*1900mm;

2. Machine weight: about 1000KG;

3, Working voltage: three-phase AC380V ±10%, AC (50/60Hz);

4, Motor power: 7.0KW;

5, working pressure: 0.4~ 0.7mpa;

6, Armature outer diameter: ∮20mm~∮81mm (special can be customized);

7, Armature stack thickness: 20~80mm (special can be customized);

8, Armature slot number: 8 slot above the even number of slots (special can be customized);

9, Armature shaft diameter: ∮3mm~∮16mm (special need to make);

10, Commutator outer diameter: ∮15mm~ 40mm;

11, Commutator hook diameter: ∮17mm~ 45mm;

12, Rotor effective shaft length: 60-270mm;

13, Winding thread diameter: ∮0.15 -- ∮0.21mm, ∮0.21 -- ∮0.7mm, ∮0.7 -- ∮1.0mm (different stages need to be replaced);

14, Production efficiency: 22 hooks, 22 slots, 12 turns -15 turns 22 seconds/each;

15, Special requirements can be determined;



Images:
