WY-CP

Product Details

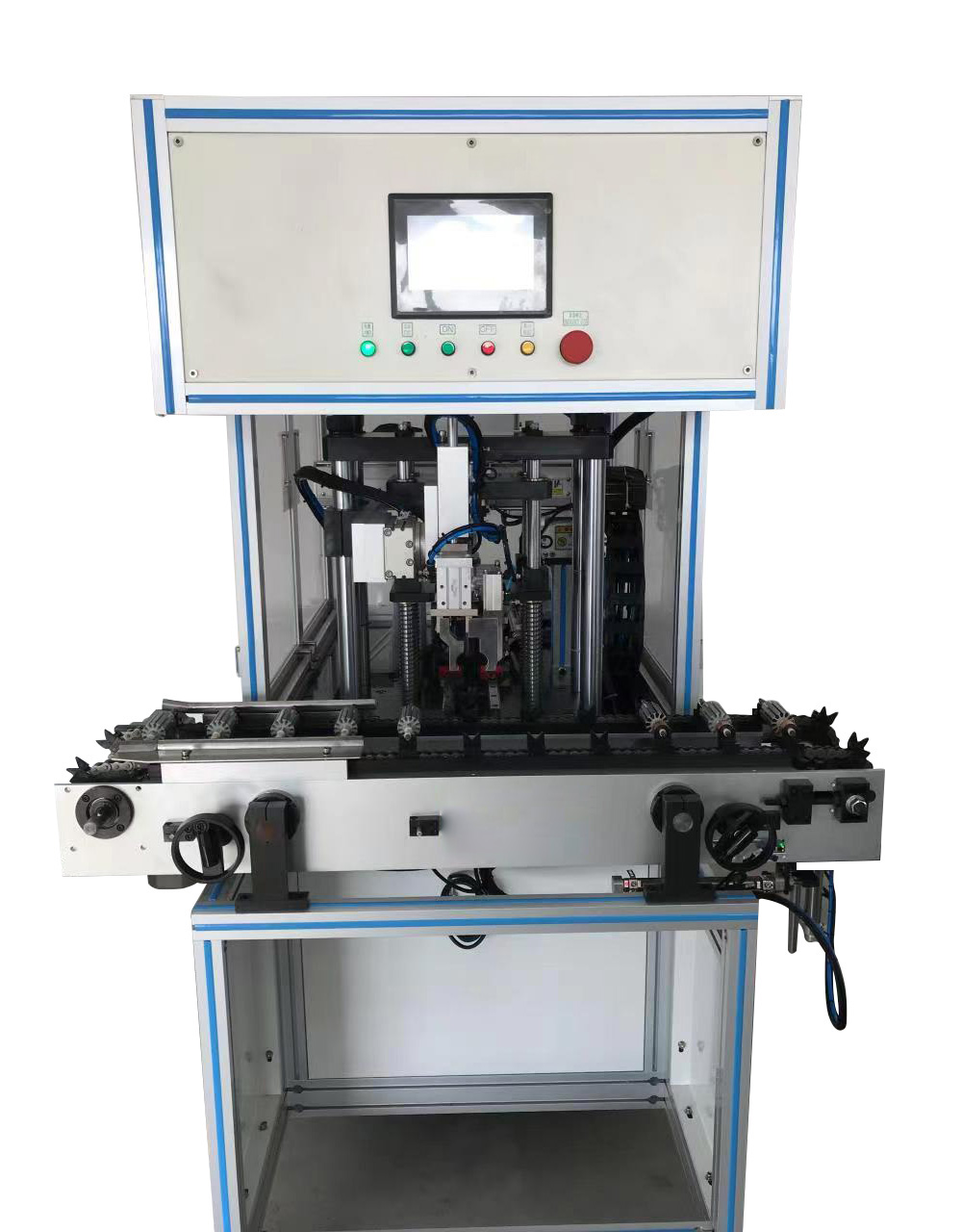

Description: Commutator Pressing Machine Model No.: WY-CP

1. Performance and characteristics

V This machine is used for pressing in the rotor commutator of micro - special series motor.

V supporting production line to realize the automatic assembly of commutator and rotor core shaft.

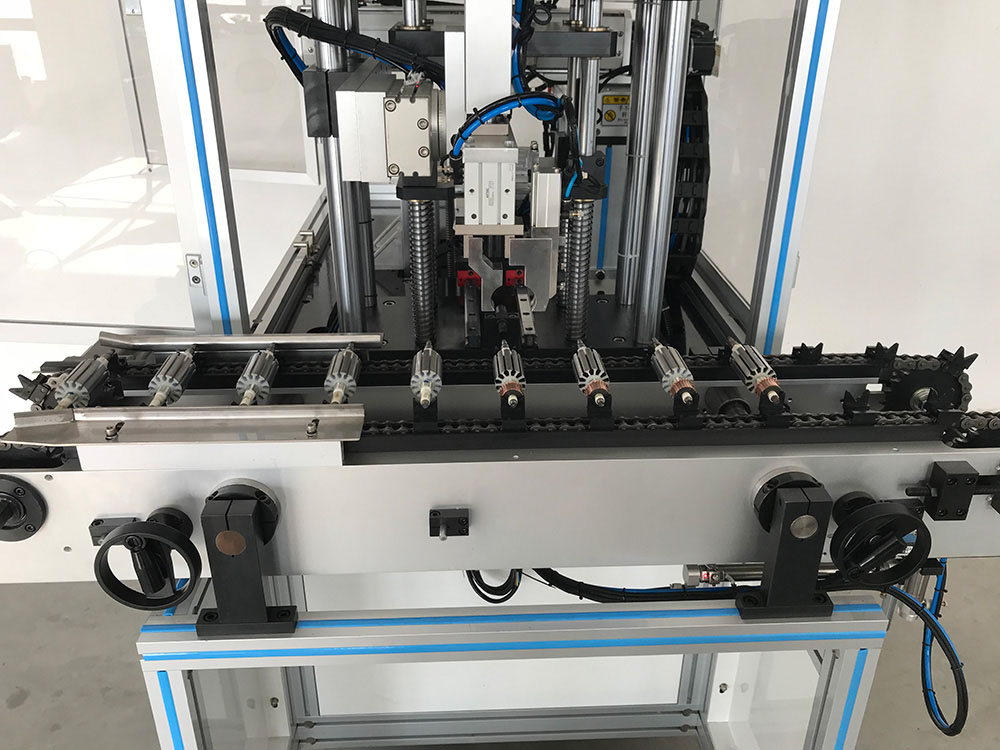

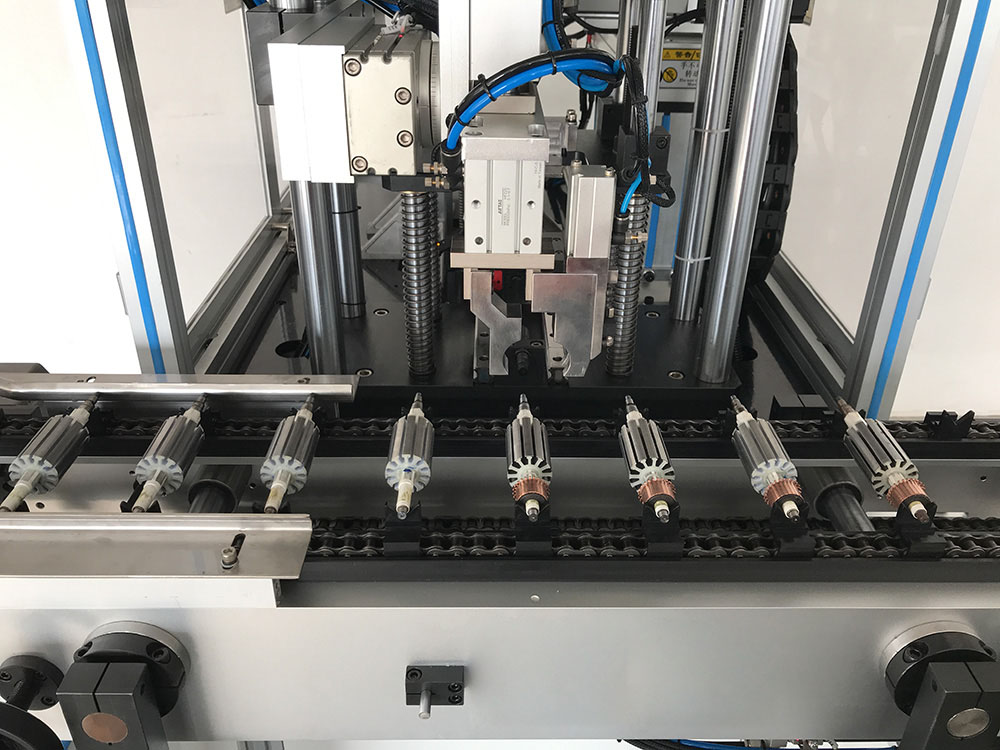

V commutator is automatically fed by the vibration plate, and the rotor is picked up by the manipulator on the production line to realize automatic loading and unloading.

V servo drive pressing, high accuracy, convenient and quick adjustment of pressing depth

V Pressure sensing monitoring cooperation, improve product quality monitoring.

V commutator and core mechanical positioning, accurate and reliable.

V using Omron PLC control, touch screen easy to operate, with automatic display alarm status function.

2. Technical parameters:

1. Machine dimensions (LXWXH) : 1700*1500*1500mm;

2. Machine weight: about 550KG;

3, Working voltage: three-phase AC220V ±10%, AC (50/60Hz);

4, Motor power: 1.5KW transformer: 1.5KW;

5, Working pressure: 0.4~ 0.7mpa;

6, Armature outer diameter: ∮20mm~ 80mm (special can be customized);

7, Commutator outer diameter: ∮15~∮60mm

8, Armature stack thickness: 20~80mm (special can be customized);

9, Armature effective shaft length: ≤220mm;

10, Armature shaft diameter: ∮8mm~ 22mm;

11, working pressure: ≤10KN;

12, production efficiency: ≤9 seconds /;

13, special requirements can be determined;
