WY-DP

Product Details

Description:

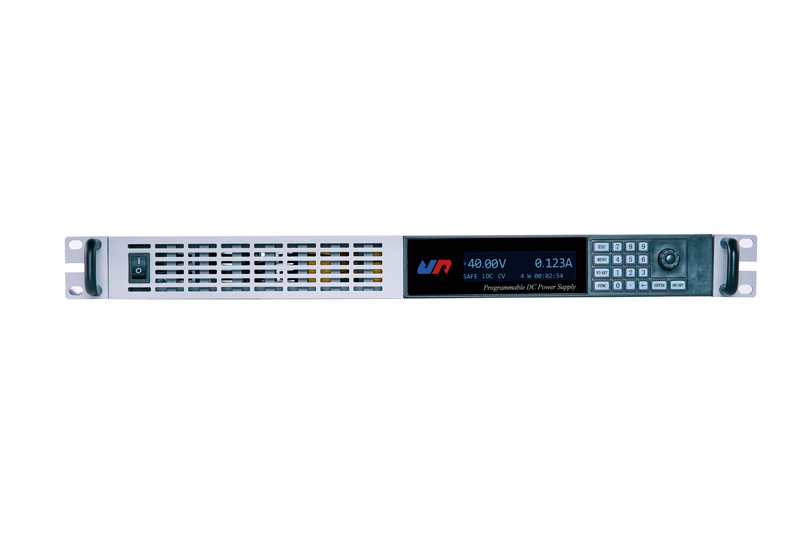

DP series of high-precision programmable DC power supply is a high quality, high power density, multi-functional cost-effective product launched by our company to meet the needs of our customers. The maximum power of 1U model can reach 5KW, and the weight is only 7.5kg. The maximum voltage of this series of products can reach 2020V, the maximum current can reach 525A.  Built-in PFC power factor correction circuit, the input voltage to meet the wide range of global power grid applications.

This series of power supply has constant voltage (CV) and constant current (CC) two working modes, and automatically switch between operating modes, also has built-in constant power (CP) limit mode, built-in analog program control (5V/10V/5K/10K) signal, USB, LAN, CAN, RS-232/485 communication interface,  Supports modbus-RTU and SCPI industry standard communication protocols. Users can select the required protocol and communication mode from the menu as required.

Feature:

1.19 "rack mount functionality for ATE and OEM applications

2.High resolution 16-bit ADC and DAC

3.Input active power factor correction

4.Arbitrary waveform curve and LIST programming dynamic output

5.Output voltage up to 2000V, current up to 525A

6.CV constant voltage /CC constant current /CP constant power operation mode

7.Built-in LAN, USB, RS-232, RS-485, CAN, analog interface

8.Voltage and current slope control

9.OLED display 5-bit display, supporting dual-language menu switching display in Chinese and English

10.Internal resistance programming simulation

11.Finally set the memory function; Timer function

12.Supports modbus-RTU and SCPI industry standard communication protocols

13.Auto start/Safe start: Optional

14.Built-in remote isolation simulator/monitoring interface

Quick selection table
