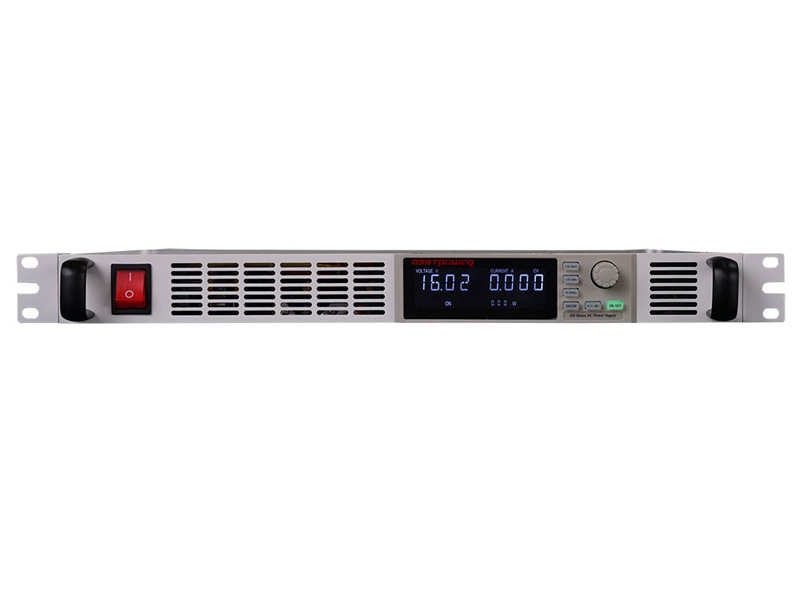

WY-DS

Product Details

Description:

DS series high precision programmable DC power supply is our company launched in order to meet the needs of our customers a high quality, high power density, multi-functional cost-effective products, 3000W power density is only 1U size, voltage up to 2000V, current up to 200A, input voltage support AC and DC two modes, Ideal output for applications requiring a wide range of output voltage or current regulation, with constant voltage and constant current working modes. It can be used in automatic testing, process control, battery charging and aging testing where high quality DC stable power supply is required. This series of products have zero voltage "soft switch" function, which can effectively reduce switching transient stress, thus having very low output noise. The soft switch can also improve efficiency and reduce heat, thus making the power supply more stable.

Feature:

1.LCD display voltage, current, power

2.High performance, high power density, compact and light

3.Extended power/current/voltage in series and parallel

4.Built-in analog monitoring interface

5.Wide range of zero voltage current adjustment

6.Low ripple and noise, comparable to pure linear power supply

7.Voltage and current preset function

8.With remote measurement function

9.Multi-function keys and encoder combined operation, support List dynamic programming output, multi-data storage

10.Support automatic test function

11.Standard 485 communication interface, support Modbus standard communication protocol

3. Application areas

Electronic components test, aging; Battery, capacitor charging equipment; Motor and controller test; Aging of photovoltaic inverters and frequency converters; Precision electroplating, sewage treatment; Aging of LED and LCD screen; Laboratory, electronic equipment, automatic testing equipment; Electronic inspection equipment, production line equipment, communication equipment; Other places where high precision DC power output is required

4. Technical indicators

Model No.:		WY-DS100-30
Input	Voltage	single phase 220VAC±15% / 300VDC±15%
	Frequency	47～63Hz
Output	Voltage	0～105V adjustable
	Current	0～33A adjustable
	Power	3000W（overload capacity 3300W）
	Source effect	stabilized voltage CV: ≤ 0.05% Steady flow CC: ≤0.05%
	Time drift	≤0.05% set value (8 hours after aging, constant load conditions, constant ambient temperature, Sense connection)
	Load effect	stabilized voltage CV: ≤ 0.1%+10mV Steady flow CC: ≤ 0.1%+10mA
	Load transient recovery time	2ms（100% to 0% or 0%to 100%，voltage restored to within ±1% of steady-state output）
	Efficiency	≥90% (standard AC input, full load)
Ripple	CV	≤120mVp-p
	CC	≤45mArms
Output LCD display	Four display modes can be switched)	Mode 1	voltage, current 4-bit display, display format: 9999; Power 5-bit display in the format of 99999
		Mode 2	voltage 6-bit display, display format: 199999； Current, power 5-bit display, display format is 99999
		Mode 3	Current, power 5-bit display, display format is 99999 / voltage, power 5-bit display, display format: 99999
		Mode 4	power 6-bit display, display format: 199999/ voltage, current 5-bit display, display format: 99999
	Display resolution (switch according to the actual value)	Display resolution is automatically changed according to the actual value (take 4-bit display as an example, X is the current value: X < 10 is 0.001; 10≥X < 100 was 0.01; 100≥X < 1000 is 0.1) the highest resolution is 0.001
Control mode	Panel manual	multi-functional keys and encoder combined operation, support List dynamic programming output
	Analog programmable	0 ~ 5V or 0 ~ 10V voltage signal (accuracy: 1%F.S.); High and low level signal control switching machine
	Digital program	control standard rS-485 communication interface, support Modbus communication protocol
External series and parallel operation		Support
Set resolution	Voltage	0.01V
	Current	0.001A
Set value precision	Voltage	0.1%+0.05%F.S.
	Current	0.1%+0.1%F.S.
Read back value precision	Voltage	0.1%+0.05%F.S.
	current	0.1%+0.1%F.S.
Protection	Input undervoltage, output overvoltage, overheating, short circuit protection, etc
Cooling mode	Cooling mode	Air-cooled intelligent fan control：The fan speed varies according to the actual curren
Operating environment	Only used indoors Operating environment temperature: 0 ° C to 45 ° C Storage temperature: -20℃ ~ 70℃ Relative humidity: ≤90%
Dimensions (mm)	480(430)W×44H×448Dmm /about12Kg
