WY-E1
Product Details
Product Description
Features :
S110/S110D Signal Level Meter is an instrument used for the construction and maintenance of analog TV , and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system. S110/S110D Signal Level Meter is compatible to analog channels, with strong comprehensive performances; it employs high brightness backlight operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate; S110/S110D is a compact, small light-weight portable signal level measuring.
| Signal Lever Meters correlation table | ||
| Model No | Constellation | Main Parameter |
| WY-E1(S110)/S110D | No | Doulbe channel, A/V, C/N, Average Power, Trunk line Voltage, |
| WY-E1(S128)/S128D | No | Spectrum, Channel Power, Tilt , A/V, C/N, Average Power, Trunk line Voltage, |
| WY-E1(S200)/200D | No | MER, BER, Tilt , A/V, C/N, Average Power, Trunk line Voltage, |
| WU-E1(S1127)/S1127DQ | Yes | Spectrum, MER, BER , Tilt , Channel Power, A/V, C/N, Average Power, Trunk line Voltage |
| WY-E1(S1130)/1130DQ | Yes | Advanced spectrum, Full automatica scan , MER, BER , Tilt , V/A,C/N , Average Power ,Channel Power, Trunk line Voltage, Threshold, Alarms |

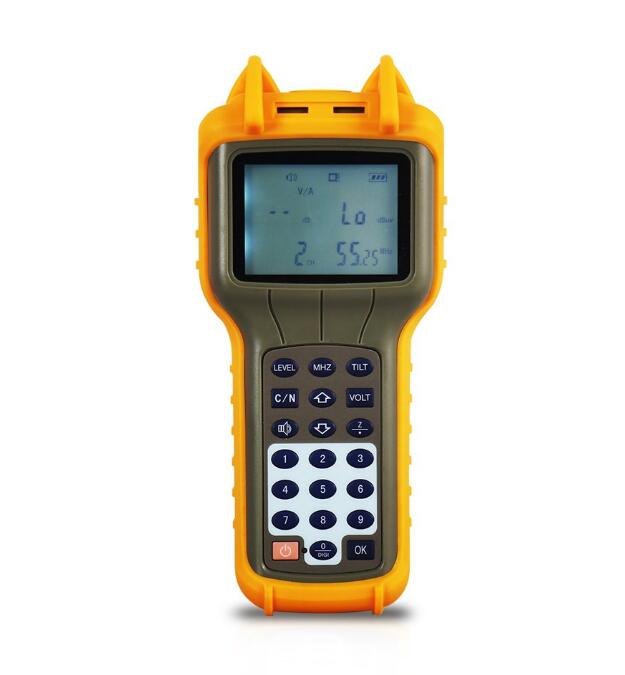

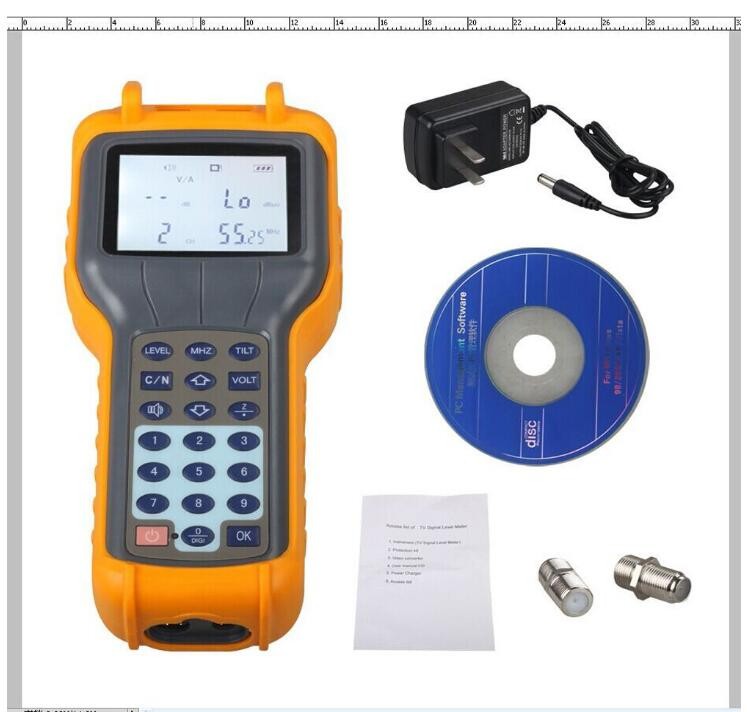

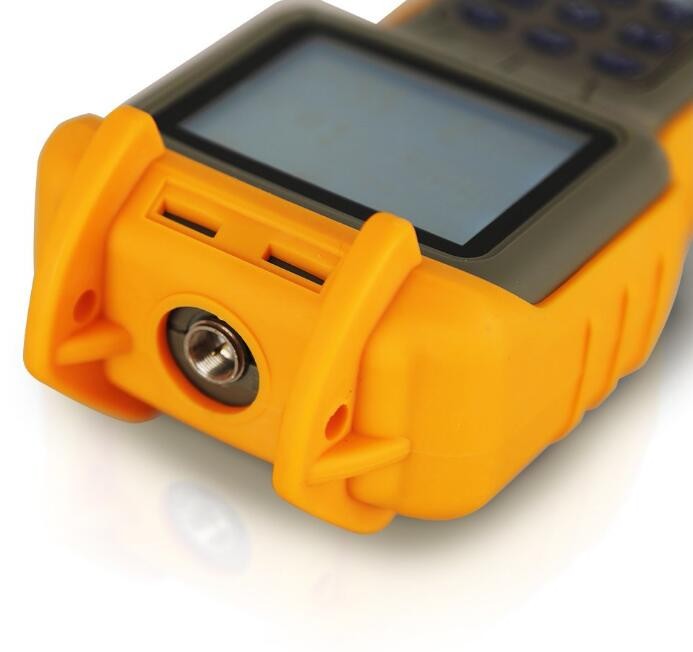

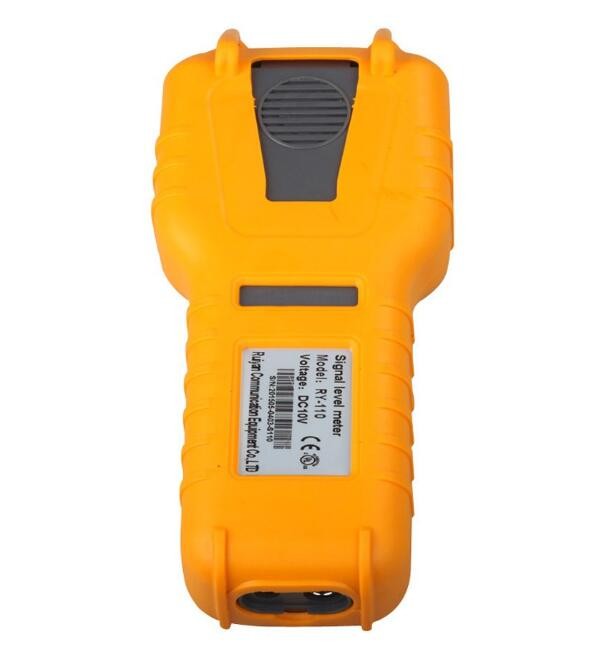

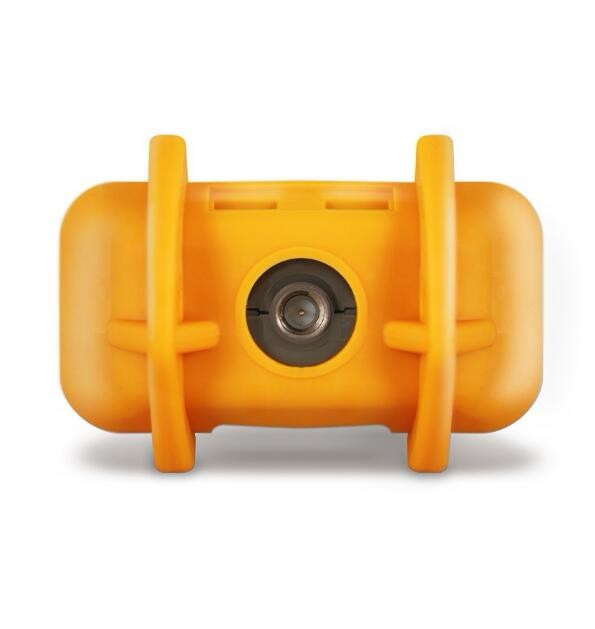

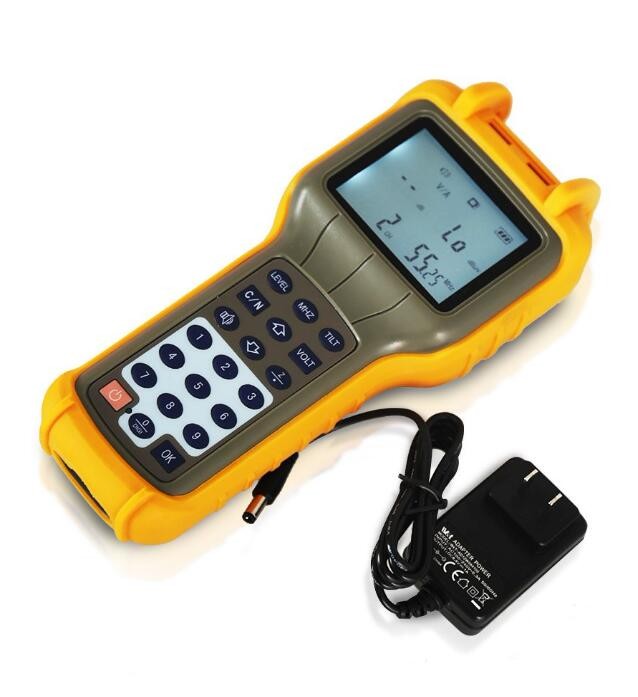

Image Details:
| Model No | WY-E1 | |
| Frequency / channel | ||
| Frequency scope | 46~870MHz | 5~870MHz |
| Channel | U.S. Standard Channel USA STD-CATV | |
| U.S. digital standard channels USA STD-CATV | ||
| Frequency accuracy | +50 * 10E-6 (20 °C +5 °C) | |
| Level measurement | ||
| Measuring range: | 30dBuV ~ 120 dBuV | |
| Measurement accuracy | +2dB (20 °C +5°C) | |
| Resolution | 0.5dB | |
| Carrier-to-noise ratio measurement | ||
| Measuring range | 20dB ~ 50 dB | |
| Signal input range | >=85dBuV | |
| Measurement accuracy | + 3dB (20°C +5°C) | |
| Channel scan | 150 | |
| Voltage measurement | ||
| Input range | 1 ~ 100V (AC / DC) | |
| Measurement accuracy | +2V | |
| Resolution | 1V |
