WY-E3
Product Details
Description
FTTH Fiber Optical Receiver,CATV Optical Equipmentis home-based optical receiver catering to the ultimate goal of development of optical access and suitable for FTTH(fiber to the home) optical fiber network users access to the end. Analog or digital signal to home can be used together with the ONU or EOC achieving triple play.
Specification:
| Parameter | WY-E3 |
| Wavelength | 1100~1600nm&1550nm&1490/1310/1550nm |
| Optical input power | 0dBm~-9dBm(analog) 0dBm~-18dBm(digital) |
| AGC control range | -6dBm~-15dBm&0dBm~-9dBm |
| Return loss | >45dB |
| Optical connector | FC/APC&SC/APC FC/PC&SC/PC |
| Bandwidth | 40~862&1006MHz |
| Flatness | ±0.75dB@40~862MHz&1006MHz |
| Rf output loss | ≥16dB@40~550MHz ≥ 14dB@550~860&1006MHz |
| Gain range | 0~18dB |
| Output level | >80dBuV(-7dBmtest) |
| Output port | 1&2 |
| Output impedance | 75 Ω |
| CNR(note1) | ≥51dB |
| CTB(note1) | ≥65dB |
| CSO(note1) | ≥62dB |
| Motherboard voltage | AC90~145V&AC165V~265V |
| Adaptor voltage | 8V |
| Inner feed voltage | 8V |
| Working temperature | -25℃~+55℃ or customize |
| Consumption | 2W |
| Product dimension | 125*80*25mm |

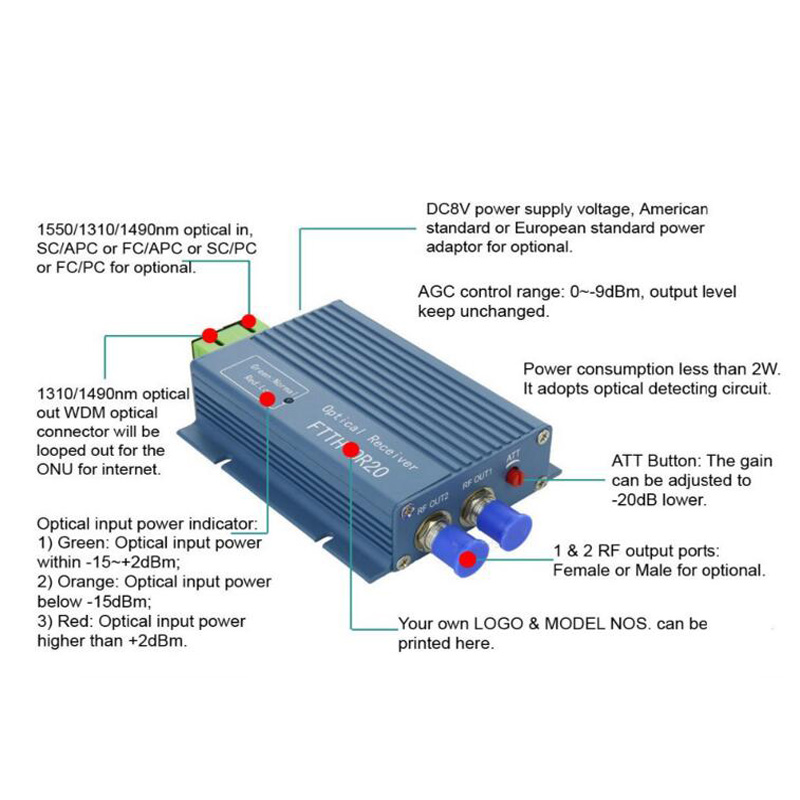

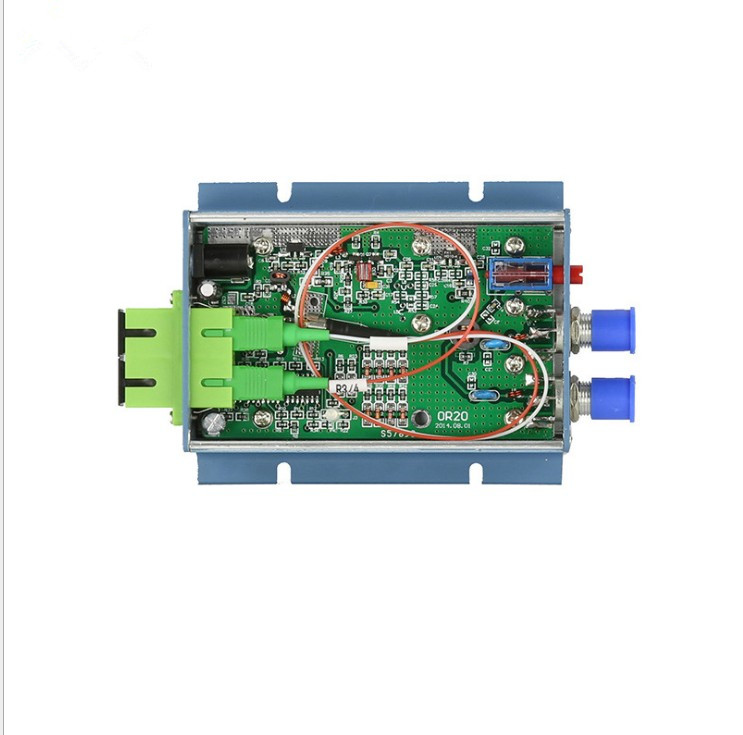

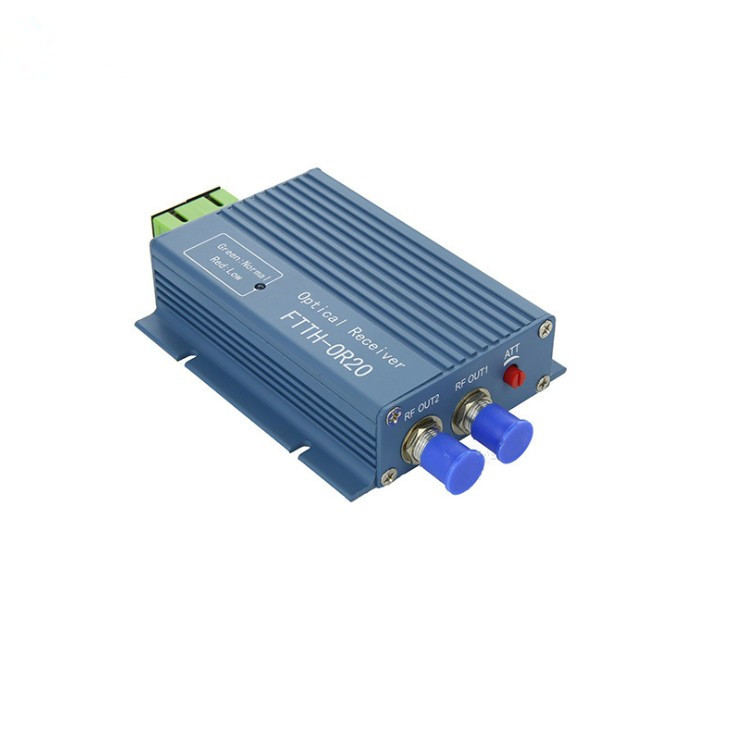

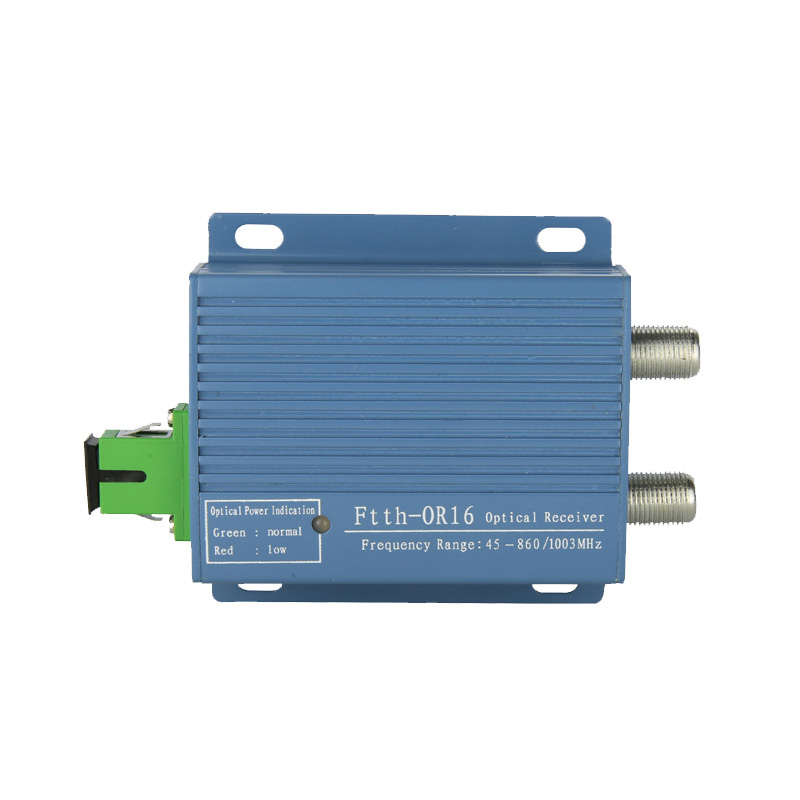

Images:
