WY-F4
Product Details
Product Description
Model No.:WY-F4
I Description

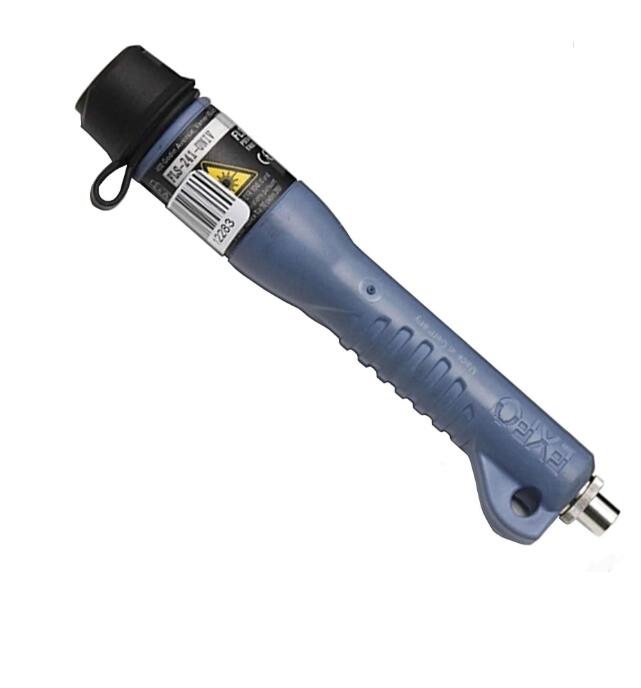

The Pen-type Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fibers.The VFL generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying continuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable.
II Features:
Easy to use
Fast response, no warm up
CW/1 Hz mode.
30Km for Max.measurement Range
CE, FCC, FDA certificates
III Specifications
| Wavelength (±20nm) | 650 |
| Output Power (mw) | 1,3,5,10,15,20,30,50mw |
| Max.measurement Range (Km) | 1,3,5,10,15,20,30 |
| Modulation Frequencies(Hz) | CW 1Hz |
| Connector Type | 2.5mm Universal connector (MU can be optional) |
| Power Supply | A A A 1.5v (2pcs batteries) |
| Battery Life(℃) | ≥50hrs |
| Operating Temp(℃) | 0~+ 50 |
| Storage Temp. | -20 ~+70 |
