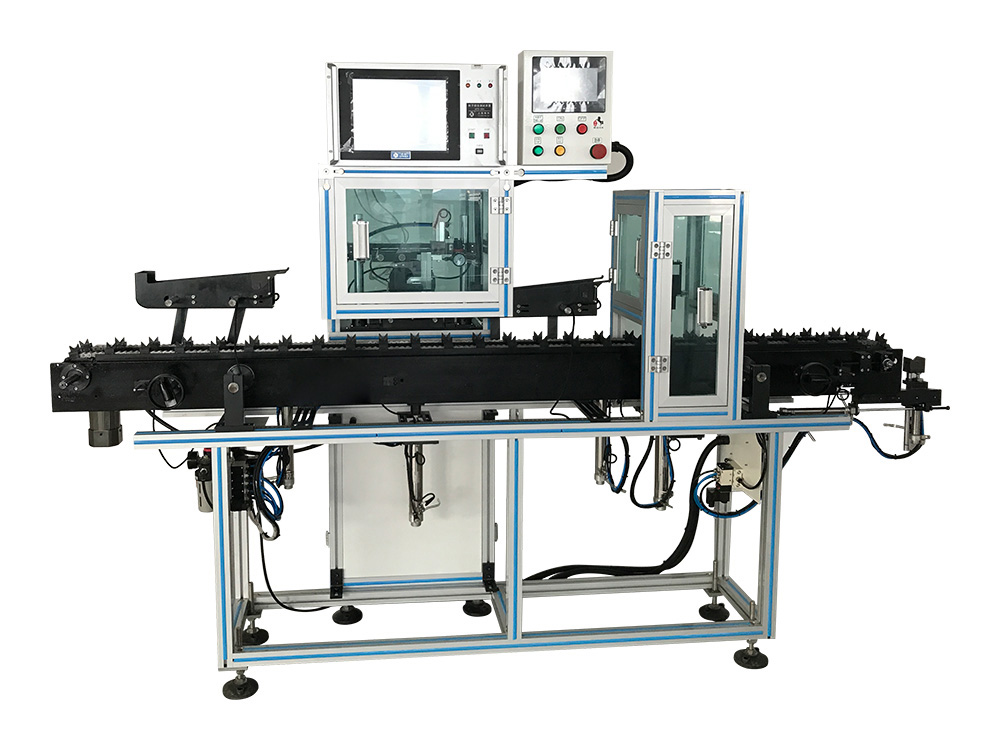

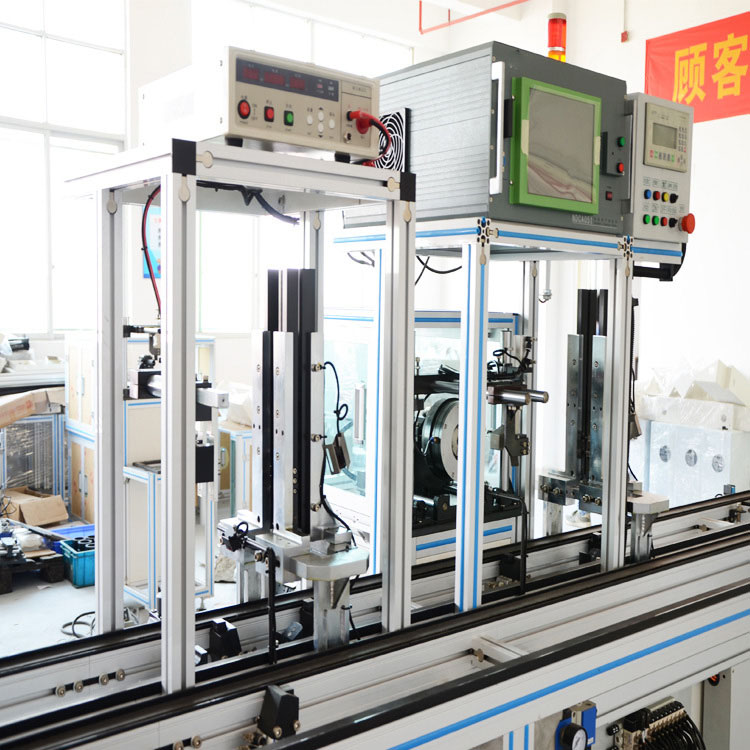

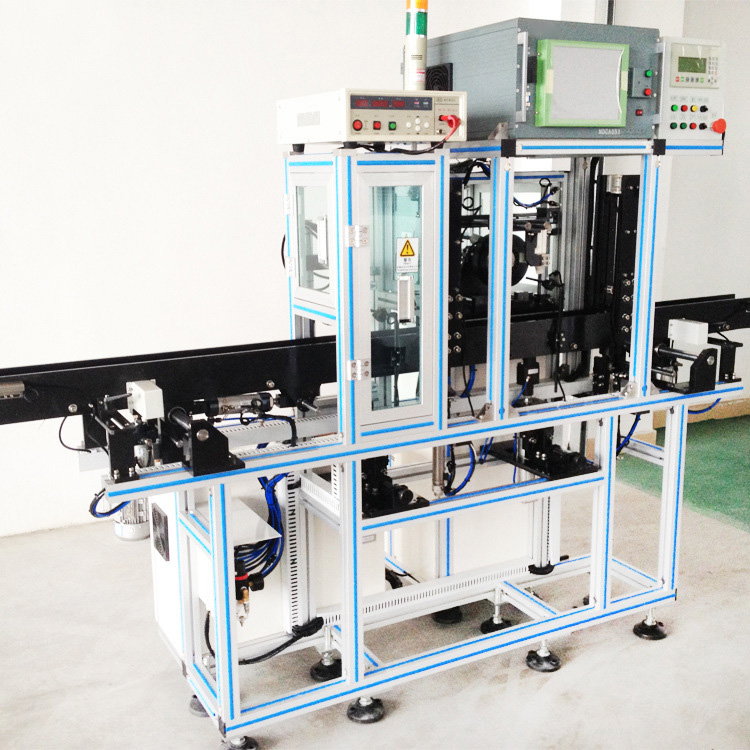

Description: Final Armature Tester Model No.: WY-FAT

1. Performance and characteristics

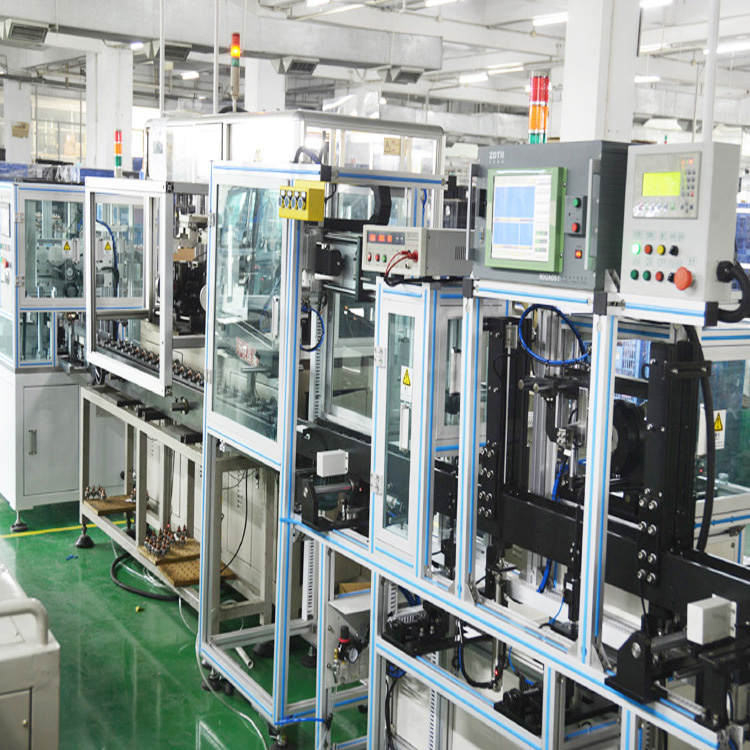

V This machine is used for on-line testing equipment of automatic line of rotor production, and can also be used separately.

V Test items:

1. Accurate welding resistance measurement. Using the direct measurement method of ten-wire balance, the spot welding quality can be detected accurately, the minimum value is 1 microeuro.

2. Consistency test of interchip resistance of armature rotor.

3. Inspection of inter-turn insulation performance between armature rotor windings.

4. Power frequency withstand voltage test between iron core and shaft and winding.

5. Inspection of insulation resistance of windings and iron cores.

V Fast test speed, test period for the next rotor loading and unloading, the beat is not more than 12 seconds.

V Built-in industrial computer, LCD true color liquid crystal display (with touch screen).

V Fully digital pressure regulating mode, automatic generation, accurate and reliable.

V 400 rotor model data storage, easy to manage production.

V has the function of printing reports and automatically removing defective products.

V Measuring needle adopts air bag type to ensure the consistency of pressure of each measuring needle.

V Configuration of different lines to achieve unmanned automatic production.

2. Technical parameters:

1. Machine dimensions (LXWXH) : 2300*820*1600mm;

2. Machine weight: about 300KG;

3, working voltage: three-phase AC220V ±10%, AC (50/60Hz);

4, motor power: 1.5KW;

5, working pressure: 0.4~ 0.7mpa;

6, rotor outer diameter: ∮25mm~ 65mm;

7, commutator pole number: less than 36 (limit 24 or 36 specified);

8, commutator axial thickness: distance from hook more than 10mm;

9. Production beat: 24 pieces;

10, rotor effective shaft length: ≤250mm;

11, production efficiency: ≤12 seconds/single cycle;

12, the measurement accuracy: see the punctual rotor test performance indicators;

13, special requirements can be determined;
