WY-FM

Product Details

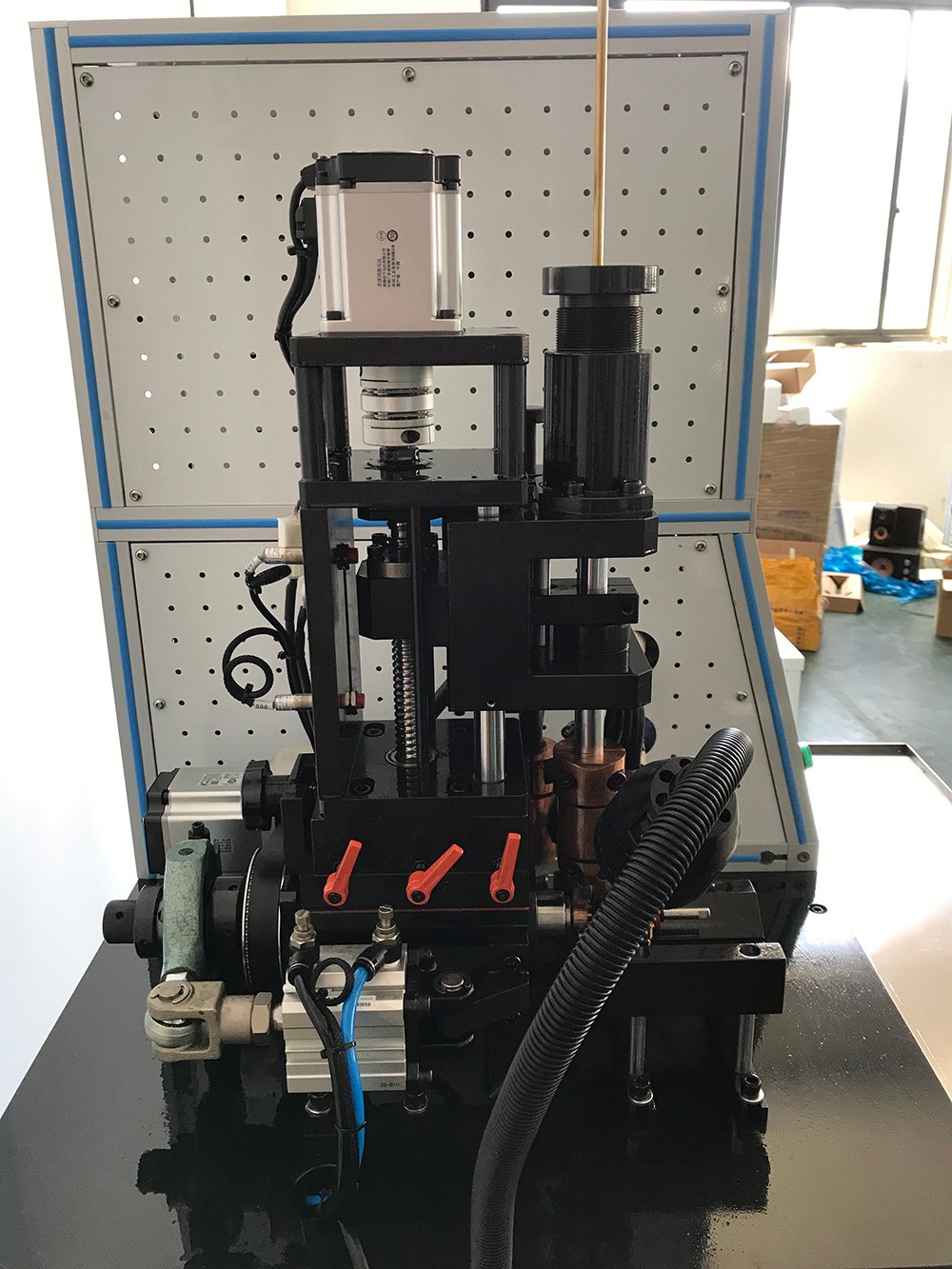

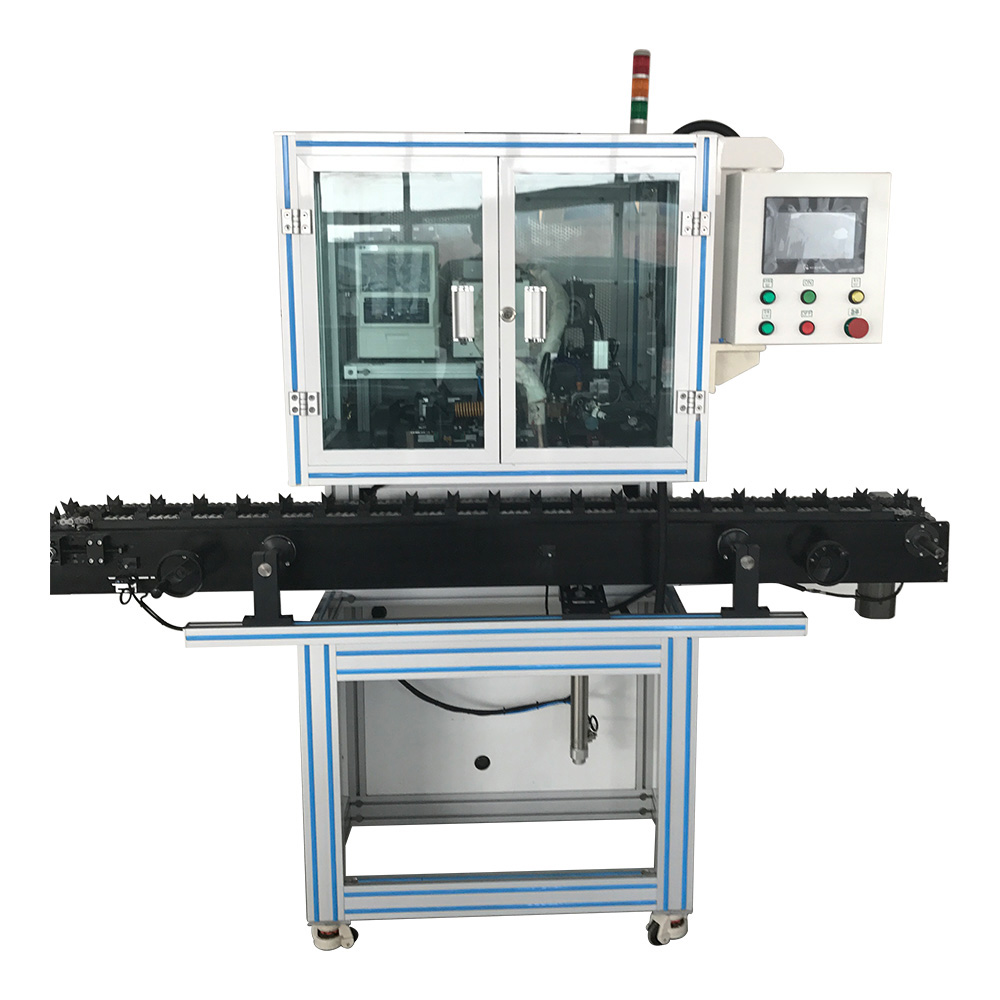

Description: Fushing Machine Model No.:WY-FM

Performance and Characteristics:

V This machine is used for commutator hook or groove to enameled wire fusion welding special equipment.

V Mechanical positioning rotor core, servo motor drive automatic indexing and spot welding.

V with simultaneous monitoring current, electrode voltage, welding power function.

Step up the welding zone to ensure that the temperature of the starting solder joint is consistent with that of the ending solder joint.

V Omron PLC programmable controller and imported DC inverter welding power supply, set a variety of specifications of products required parameters.

 Technical parameters:

1. Machine dimensions (LXWXH) : 1300*1100*2350mm;

2, machine weight: about 450KG;

3, working voltage: three-phase AC380V ±10%, AC (50/60Hz);

4, motor power: 20KW;

5, working pressure: 0.4~ 0.7mpa;

6, rotor diameter: ≤70mm (special can be customized);

7, commutator outer diameter: ≤ 60mm;

8, rotor shaft diameter: ∮3-∮16mm;

9, applicable wire diameter: ∮0.2mm~ 1.2mm;

10, welding efficiency: single welding head welding 0.5 seconds/hook (excluding loading and unloading);

11. Automatic feeding and discharging time: 4 seconds;

12, indexing servo power: 0.75KW spot welding servo power: 0.75KW

13, welding resistance: ≤0.02 Haoou;

14, cooling circulation system: water speed ≥1000lm/min, water temperature control between 25℃ and 30℃;

15, special requirements can be determined;
