WY-FP

Product Details

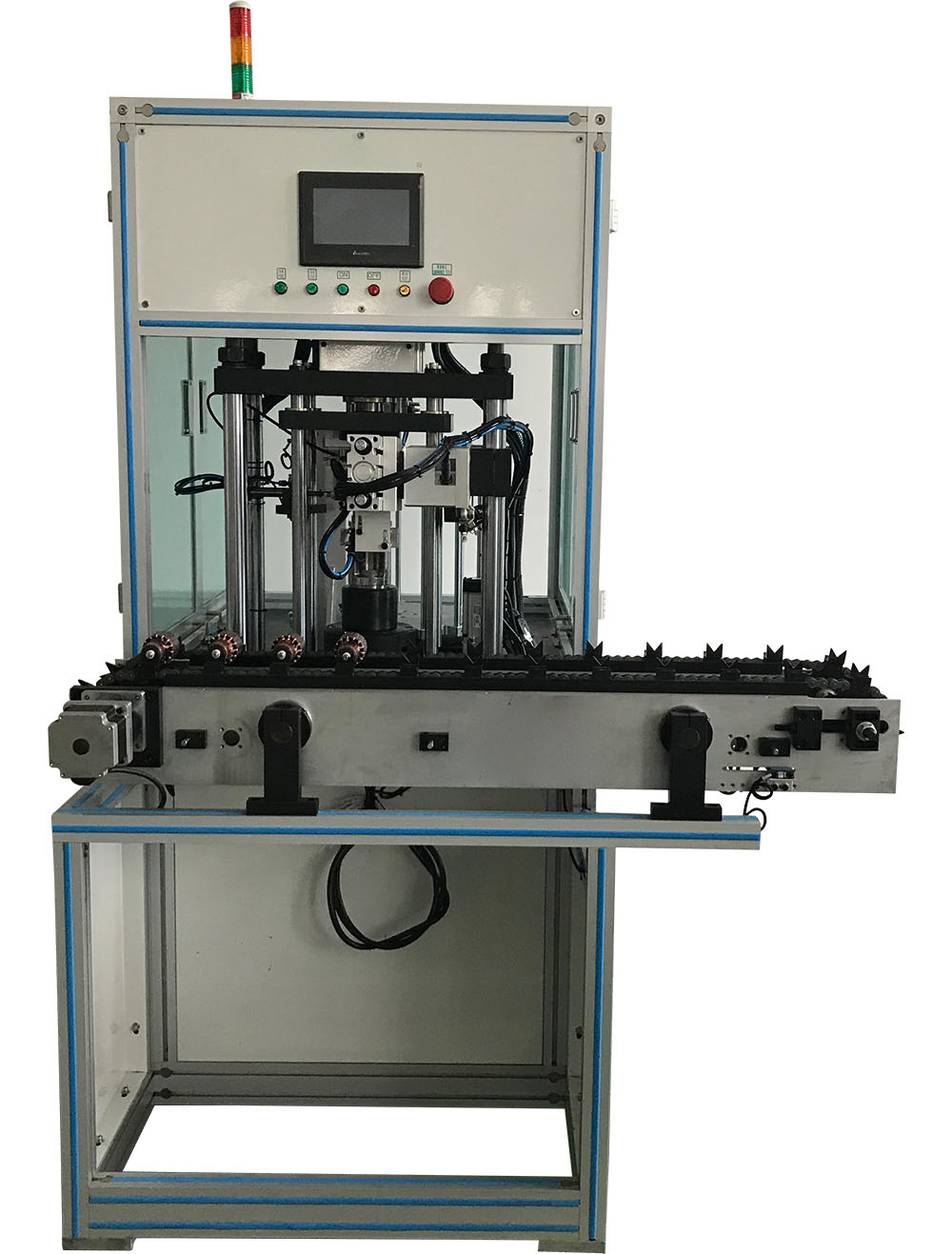

Description: Fan Pressing Machine Model No.: WY-FP

1. Performance and Features

V This machine is used for all kinds of micro motor rotor blade automatic pressing equipment.

V The equipment has stable performance and high production efficiency, reaching the international level of similar models.

V Quick replacement tooling, easy to operate, convenient and reliable, complete the full set of tooling replacement within 15 minutes.

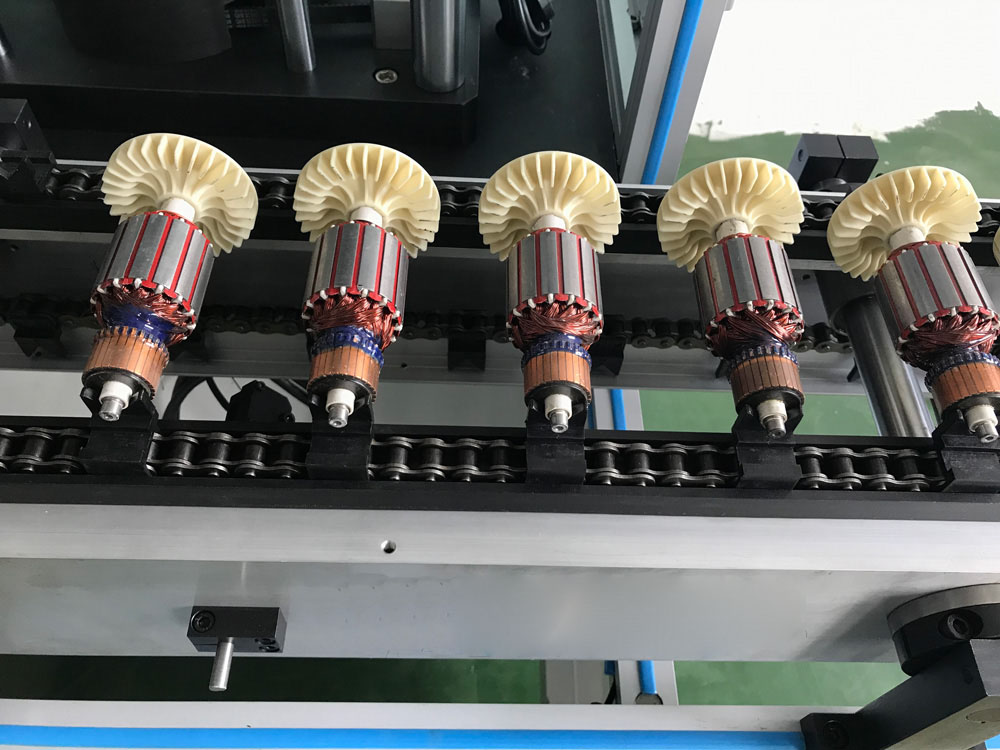

V Fully automatic rotor loading, blade grasping, rotor keyway positioning, blade automatic pressing, rotor unloading.

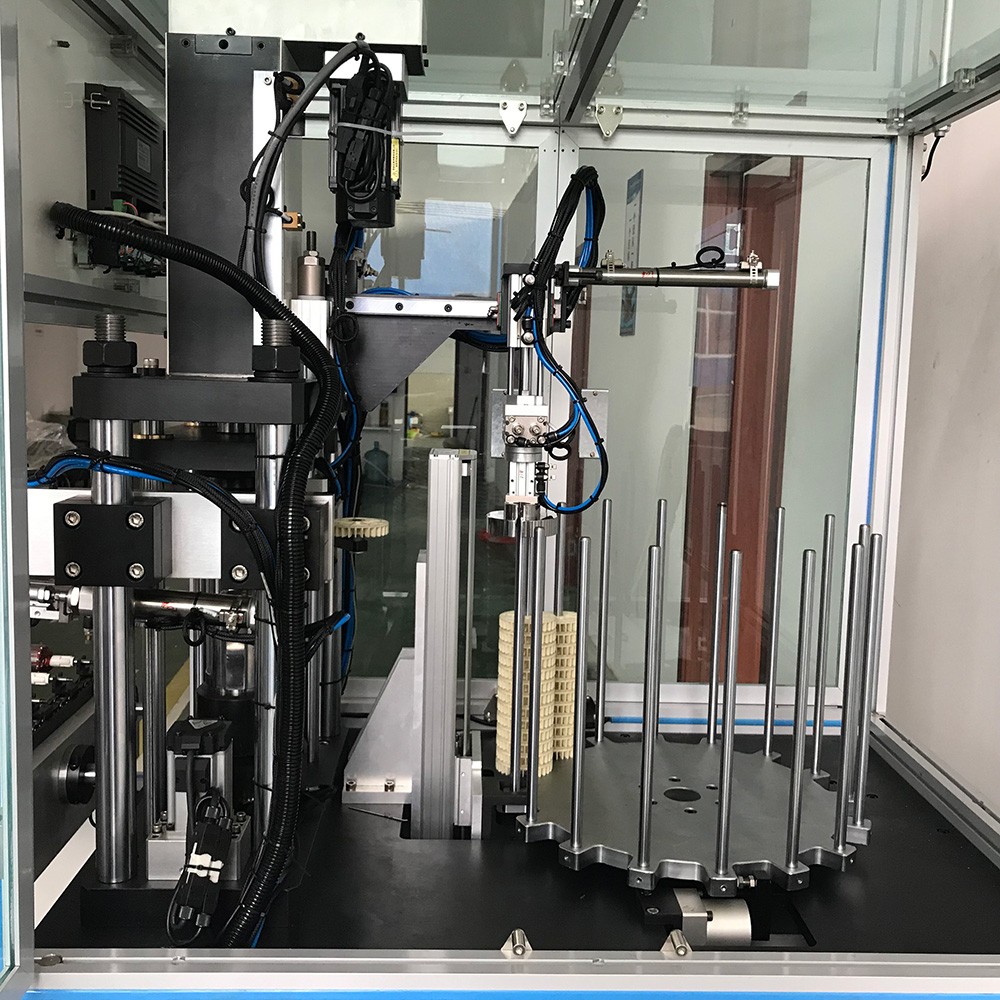

V Using servo cylinder automatic pressing, servo transposition to find the reference (spline), rotary disc type blade feeding.

V Equipped with 1.2m chain conveyor line to complete unmanned automated production equipment.

2.  Main Technical parameters:

1. Machine dimensions (LXWXH) : 1500*1200*1700mm;

2. Machine weight: about 450KG;

3, Working voltage: three-phase AC220V ±10%, AC (50/60Hz);

4, Motor power: 2.4KW

5, Working pressure: 0.4~ 0.7mpa;

6, Armature outer diameter: ∮20mm~ 60mm ;

7, Armature stack thickness: 12~80mm

8, Armature Slots:8~36 slots ;

9, pressing-in precision:± 0.15mm;

10, PoductionTakt: ≤13”(including loading and unloading time)

11, Effective shaft length of rotor: under 200mm(Special can be customized)

12, Fan: All kinds of plstic fan for power tools on the market
