WY-L1
Product Details

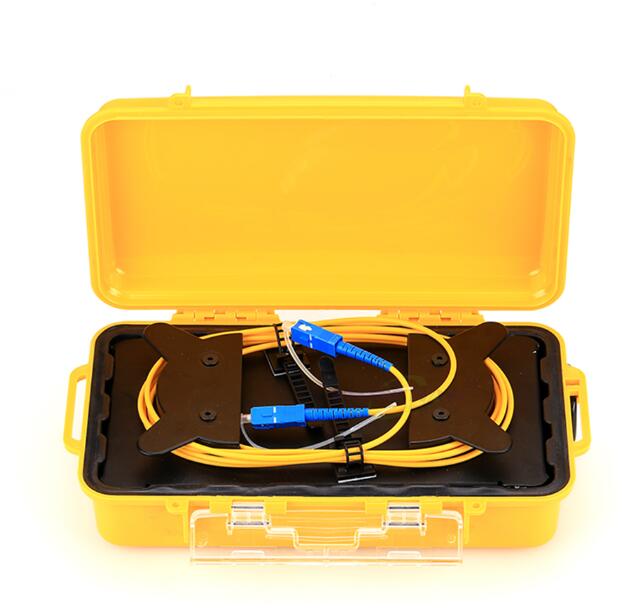

Fiber Ring OTDR launch cable connects the OTDR to the link-under-test and relays insertion loss and reflectance of the near-end connection. This help to avoid variations in loss and distance measurements when testing. The launch fiber cable helps to negate blind spots or the Dead Zones of an OTDR which occures when there is high launch power or faults near the launch end of the fiber.
We can offer OTDR launch cable with 500m,1000m,2000m or customized length as per customers requirements.
| Specification: | |
| Model No. | WY-L1 |
| Connector type: | SC, LC, ST, FC, E2000. MPO etc |
| Length: | from 500m to 2KM |
| Dimension: | L23.8cm* W14.1cm *H6.7cm |
| Easy open latch | |
| Water resistant, crushproof and dust proof | |
| Material: | SR Polypropylene |
| Color: | Yellow |
| Operating temperature -40℃ to +80℃ | |
| Type of fiber: | YOFC G652D or corning SMF-28 |
| Lead length: | 1m-5m, outside diameter 2.0mm or 3.0mm |
| Back Reflection(RL) < -55 DB | |
| GR-326 Standard | |
| Apex offset: | 0 - 50 um |
| Radius of curvature 7 – 25 nm | |
| Fiber roughness: | 0 – 25 nm |
| Ferrule roughness: | 0-50 nm |
| Fiber attenuation(9/125) | |
