WY-M17

Product Details

Description:

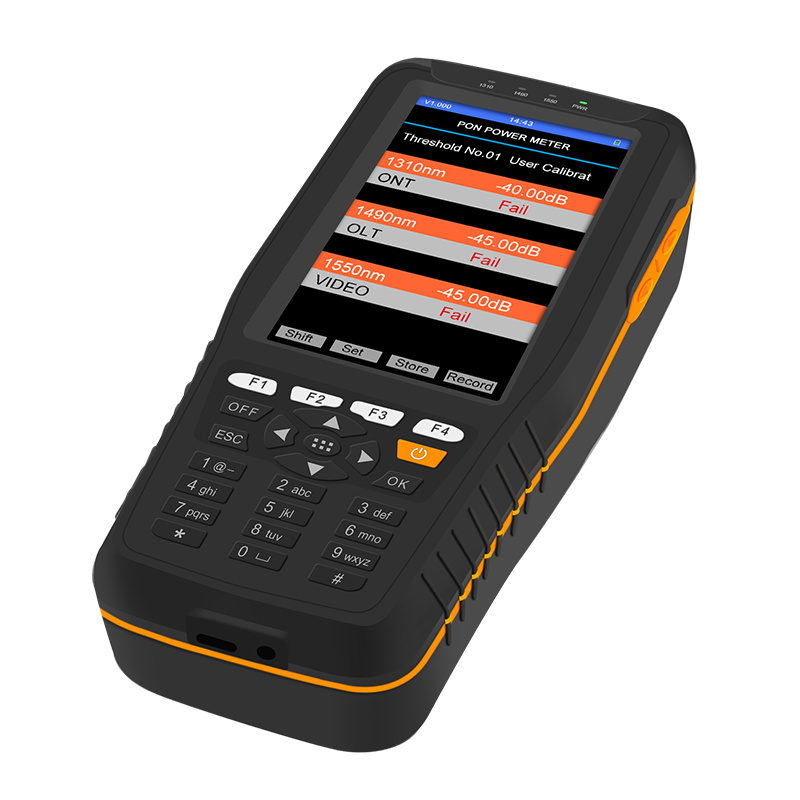

1.Handheld, easy to operate

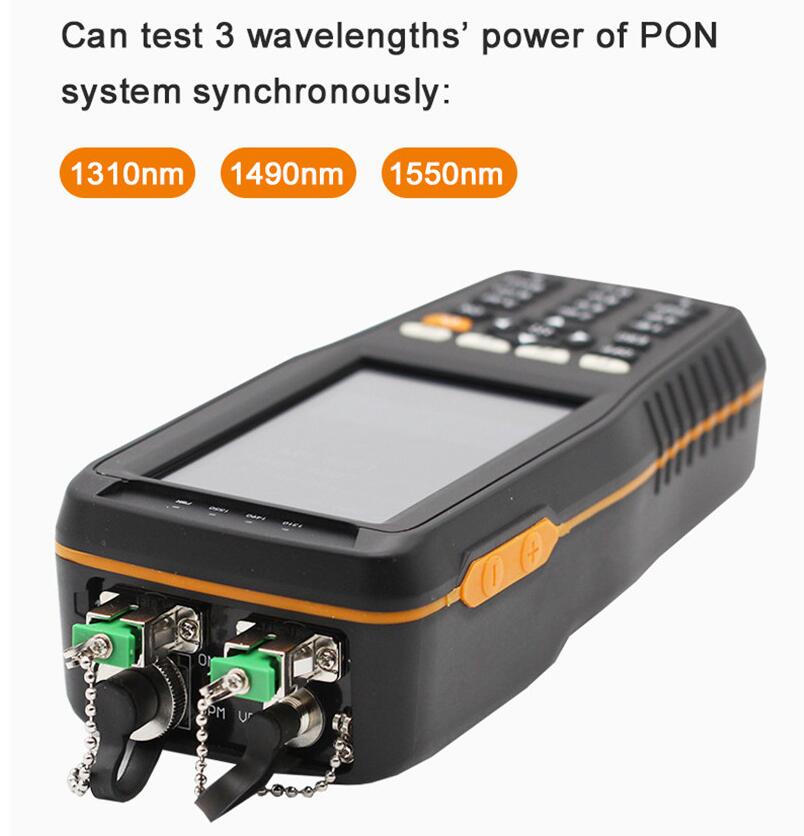

2. Can test 3 wavelengths' power of PON system synchronously: 1310nm, 1490nm, 1550nm,
3. Can test the burst mode signal of 1310nm
4. True color screen
5. Friendly operation interface, human message management and operation function
6. Supply 10 groups of threshold values for operator's choice, analyze and display pass and fail status
7. Relative value choice and edit function

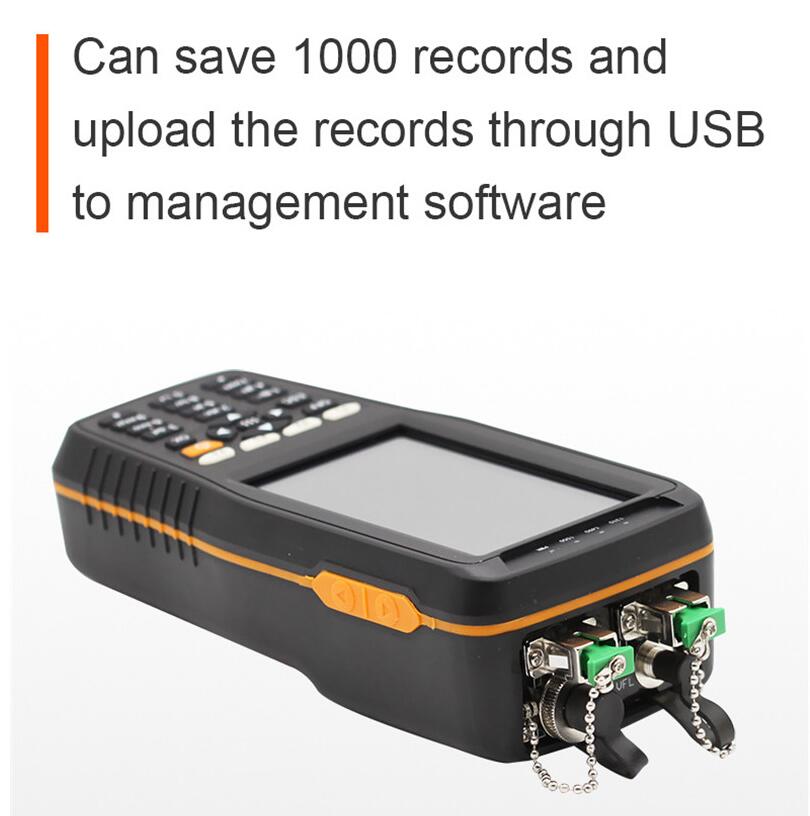

8. Can set the threshold value, upload data, and calibrate wavelength through management software
9. Auto shut off (according to set value)
10. Auto backlight off(according to set value)
11. 6600mAh Lithium battery
12. Power saving design (Low voltage self check and power off)
13. Real-time clock display

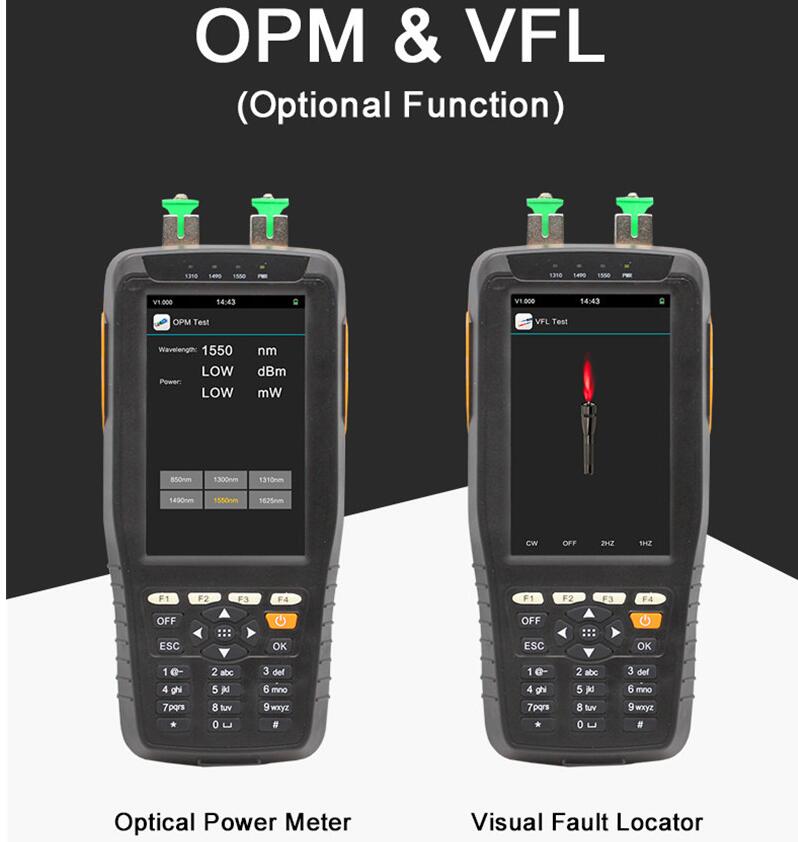

14. Optical Power Meter ( Optional Function)
15. Visual Fault Locator ( Optional Function

Images:

Model No.: WY-M17

Standard wavelengths 1310 1490 1550 (upstream) (downstream) (downstream) Pass zone(nm) 1260~1360 1470~1505 1535~1570 Range(dBm)
-50~+10 -50~+10 -45~+23 Isolation @1310nm(dB) >40 >40 Isolation @1490nm(dB) >40 >40 Isolation @1550nm(dB) >40 >40 Accuracy
Uncertainty(dB) ±0.5 Polarization Dependent Loss (dB) <±0.25 Linearity(dB) ±0.1 Through Insertion Loss(dB) <1.5 Resolution 0.01dB
Unit dBm/xWLCD: 480*800, True color touch screen
Battery: 3.7V 6600mAH rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions(mm) : 185*80*50
Weight(g): about 370g
