WY-M19
Product Details
Description:
◇Self Calibration
◇ Set the Auto Off
◇ Wavelength Memory function after turn off the tester
◇ High Accuracy, high ,High sensitivity, high linearity
◇ Stable VFL Output

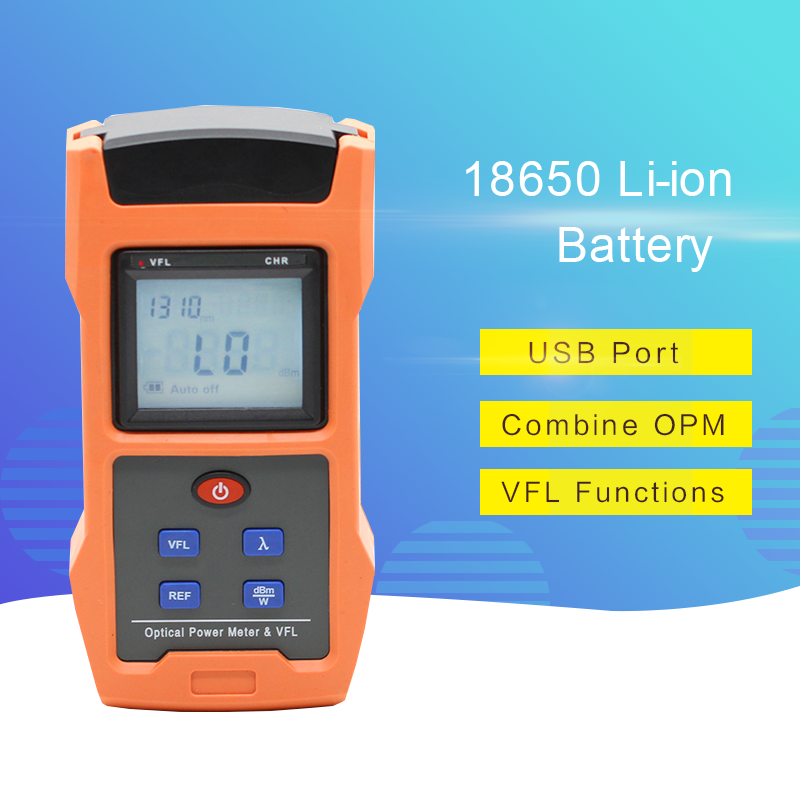

◇ USB Charge port
◇ FC,SC Connector
◇ 18650Li-ion Battery
◇ Lower power consumption design, long standby time
◇ Rubber Out shell, increased the protective properties for field work
Images:

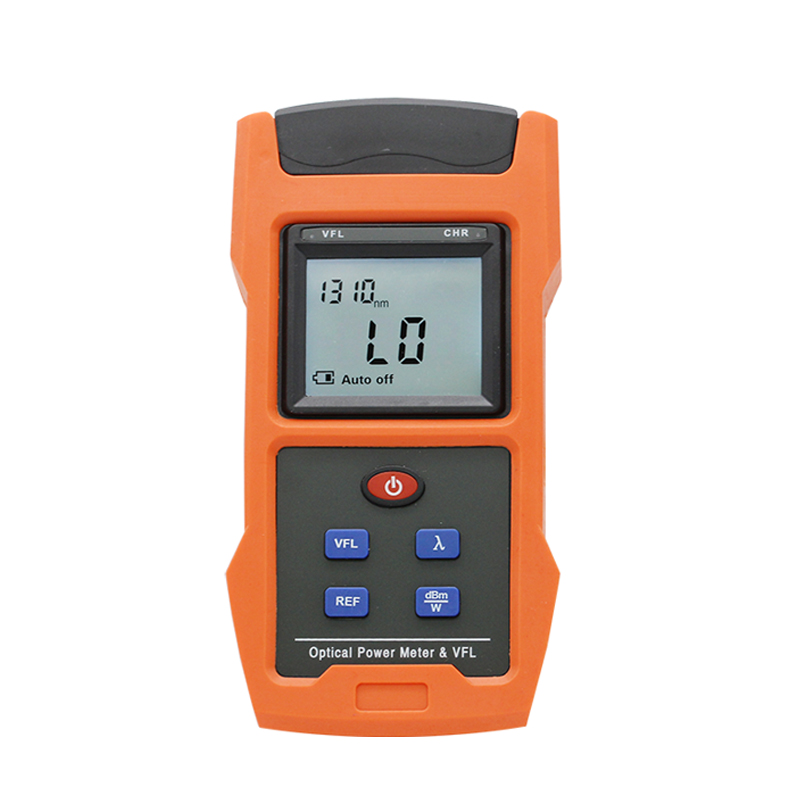

Model No.: WY-M19
| Optical Power Meter | Detector Type | InGaAs |
| Optical Connector | SC/FC & 2.5mm Universal | |
| Calibrated Wavelengths | 850,1300,1310,1490,1550,1625 nm | |
| Measurement Range | +6 ~ -70 dBm | |
| Accuracy | ±0.2 dB | |
| Power Measurement Linearity | ±0.1 dB | |
| Display Resolution | ±0.01 dB | |
| Power Display Units | dBm, mW, uW | |
| Visual Fault Locator | Output power | 1mw/10MW/20mw/30mw |
| Range | 12-km@SM | |
| Connector | SC/FC/ST & 2.5mm Universal | |
| Laser safety rating | Class 2 | |
| Wavelength | 650nm±20nm | |
| Output modes | Continuous (CW),2 Hz pulsed | |
| Reverse battery protection | Yes | |
| Others | Power Supply | 18650 Li-con battery |
| Auto Off | 10 minutes | |
| Working time | >200hours（only OPM Work） ≥50小时（10mWVFL & OPM Work meanwhile） | |
| Working Temperature | -10~+45 | |
| Weight | 250g | |
| Dimensions | 160*75*10mm |
