WY-M2

Product Details

Description:

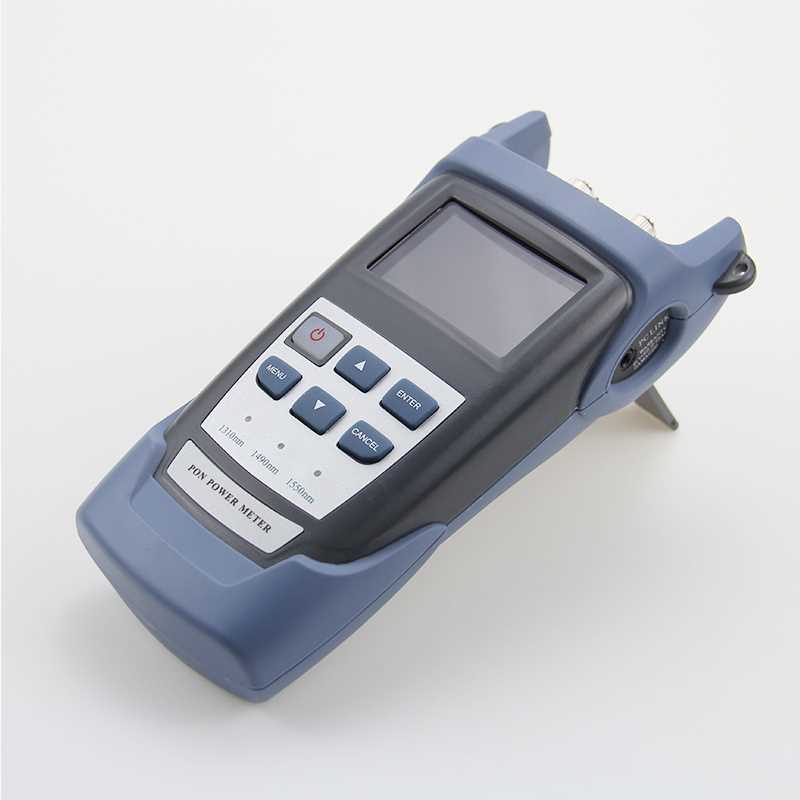

PON Optical Power Meter is a small size, low loss and good quality handed-held meter. It is designed for the testing, installation and maintenance of FTTX PON network, which can be used for APON, BPON, EPON and GPON network. FHP2P01 PON Optical Power Meter has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/1550nm. It can directly show the status of pass, warning or failure by threshold testing. FHP2P01 is an ideal tool for PON installation and maintenance.

Features:

Model No: WY-M2

1.Handed-held, easy-to-carry and use
2.P/F testing and normal testing mode
3.Two testing ports with "ONU" & "OLT/Video"
4.Support 1310nm upstream CW/burst signal and 1490nm/1550nm downstream signal
5.Design for networks of APON, BPON, EPON and GPON
6.Threshold programmable
7.Huge data storage capability
8.Software is available for communication

Images:

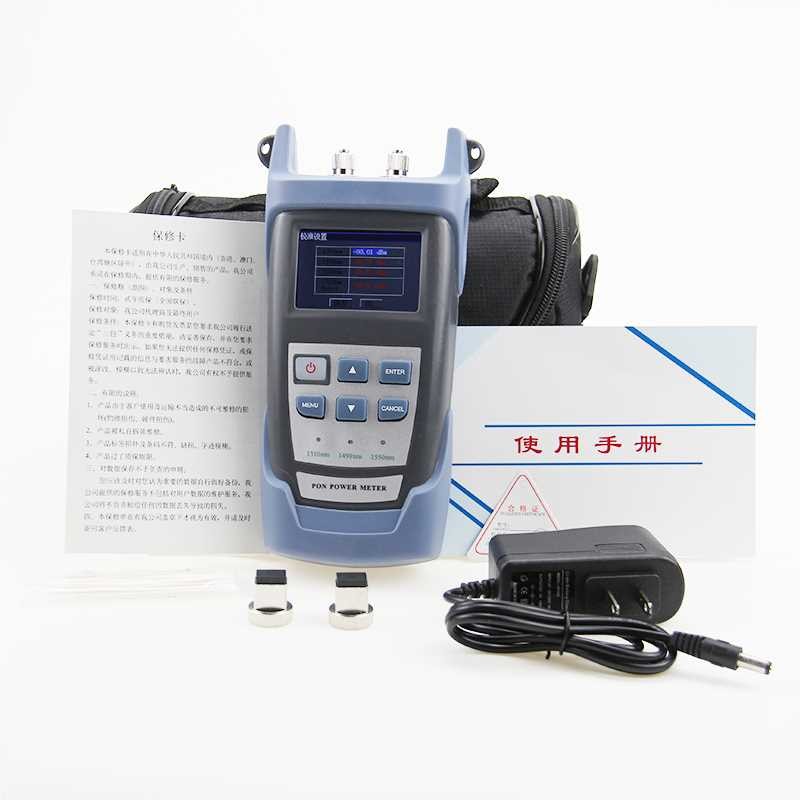

Main Unit, Carrying Case,Calibrate Certification, Manual, 2*AA Rechargeable batteries,2*FC/PC Adapters,2*SC/PC Adapters,3*Caramic Sleeves,USB cable, CD softeare
