WY-M7
Product Details
Description:
For PON network testing
Support online measurement
Pass through measurement
Fast assessment by PASS/FAIL function
Display 1310/1490/1550 results in one screen
Test 3 wavelengths separately and simultaneously
One-year warranty and Three-year recommended calibration interval

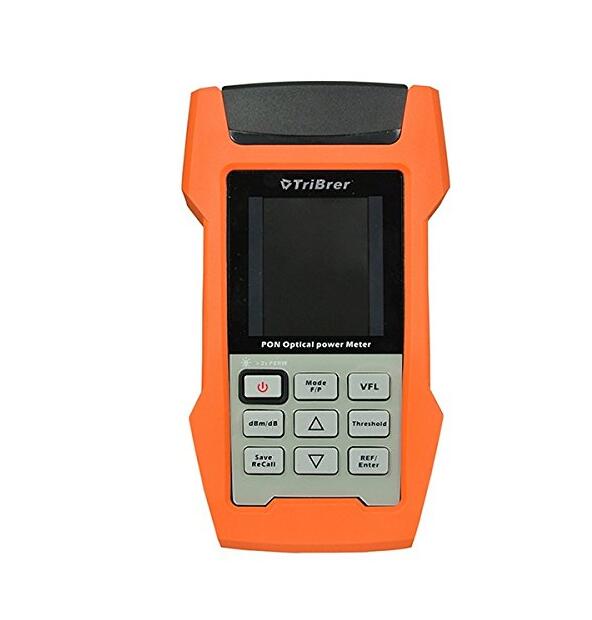

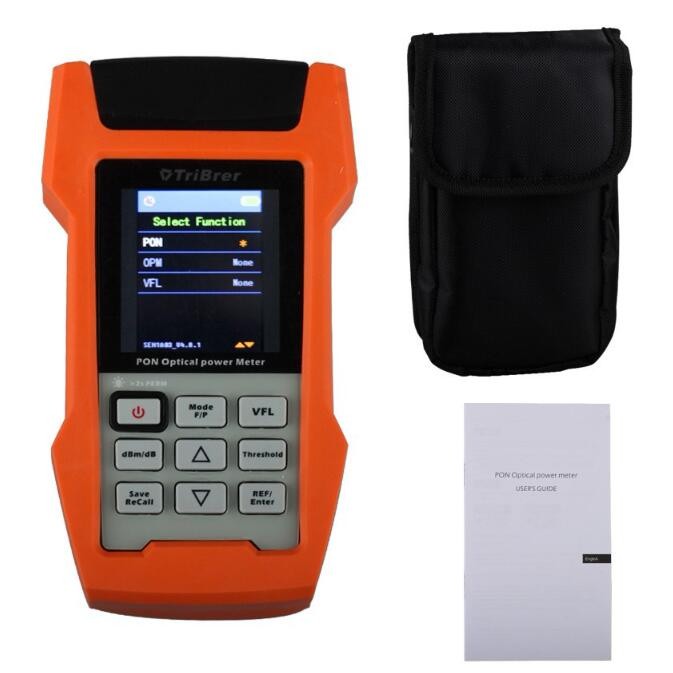

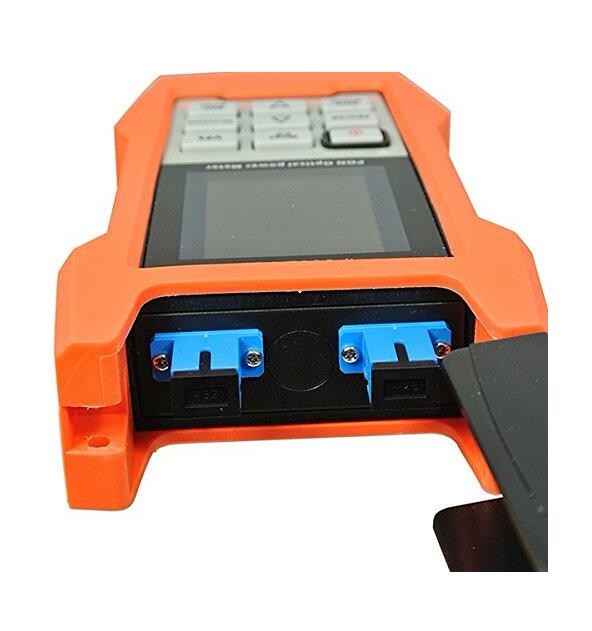

Images:
| Model | WY-M8 500 | WY-M8 500-V01 | WY-M8 500-V10 | WY-M8 500T | WY-M8 500C |
| Measurement Range(dBm) | 1310 nm: +10 ~ - 35 dBm/1490 nm: +10 ~ - 50 dBm/1550 nm: +25 ~ - 45 dBm | ||||
| Pass Through Loss | < 1.5 dB | ||||
| Accuracy * | ± 0.2 dB (burst signal:± 0.5dB) | ||||
| Threshold sets | 10 | ||||
| Data Storage | 1000 | ||||
| Standard Connector | SC/UPC ( or customize ) | ||||
| OPM Module | NO NO NO +8~-70dBm +26~-50dBm | ||||
| VFL Module | NO 1mW 10mW NO NO | ||||
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy | ||||
| Battery Charge | Yes | ||||
| Connect To PC | Optional function | ||||
| Operate Time | Above 36 hours | ||||
| Power Supply | 3* AA batteries | ||||
