WY-MC2

Product Details

Description:

This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.

Features

Model No.:WY-MC2

* Modular design, plug and play
* Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex
* Available in single fiber WDM versions - 1310/1550 nm wavelengths used
* Supports automatic cross of twisted pair ports

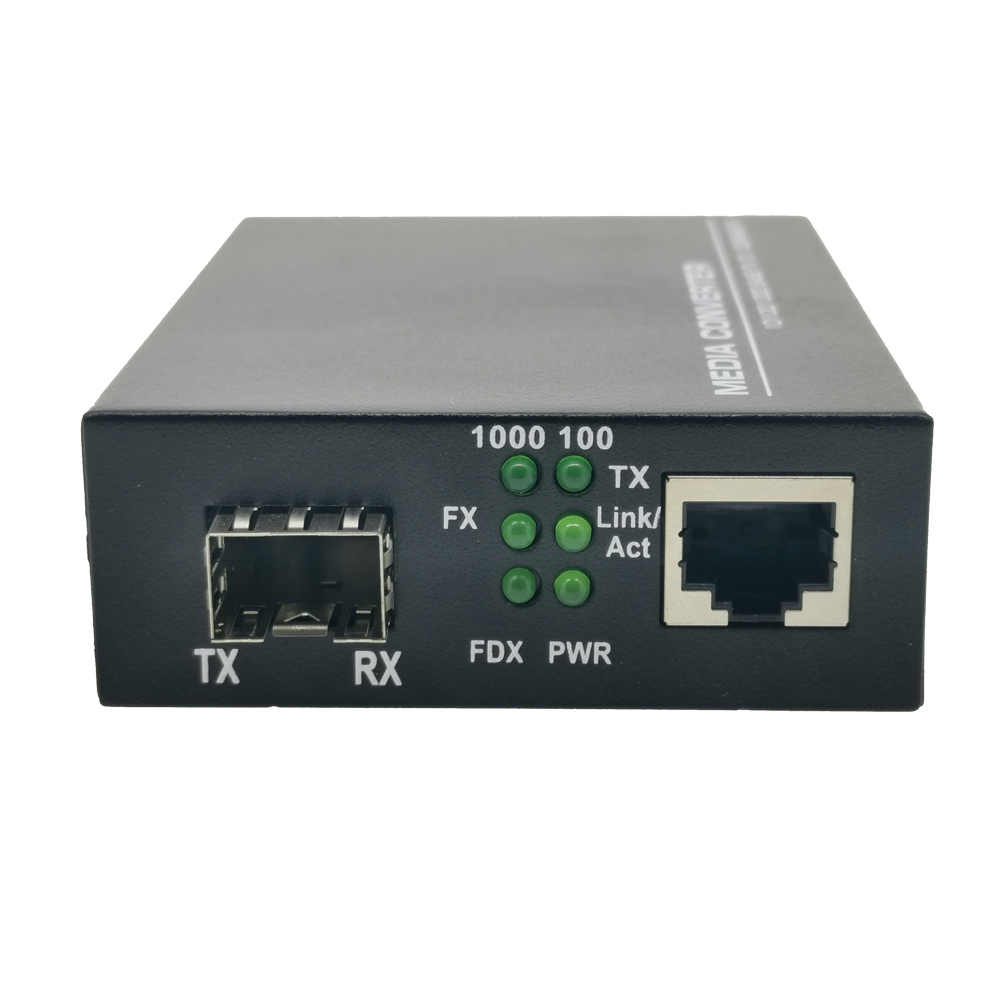

* Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status
