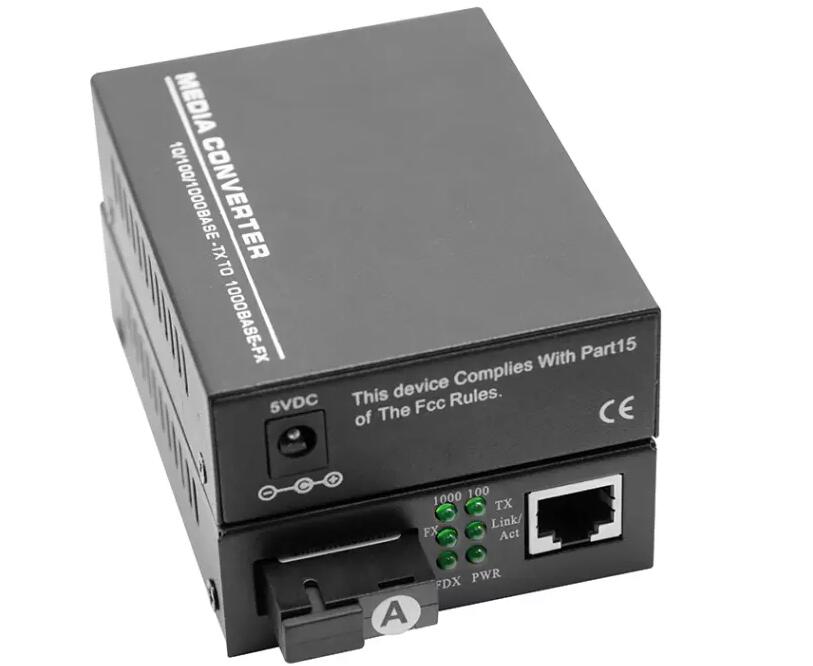

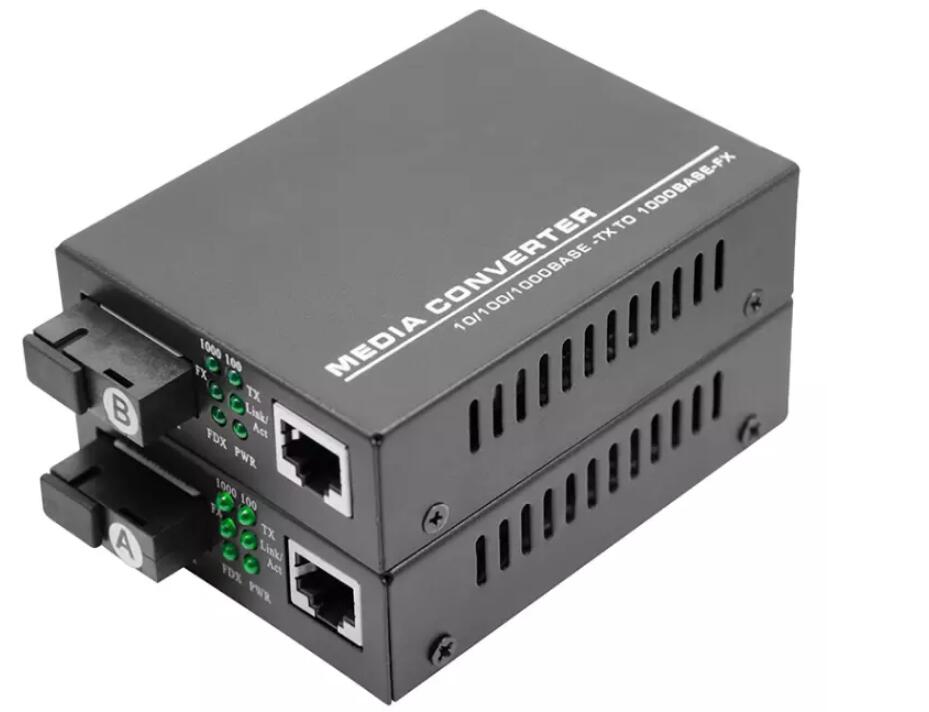

10/100/1000M adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX/1000 Base-Fx and 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network.We can offer dual fiber multi-mode as well
single fiber single-mode.
2.Application
With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
3.Technical Parameters
Model No.:WY-MC3
Parameter | Specification | |||||
UTP Port | 1-port RJ45 | 2-port RJ45 | 4-port RJ45 | 6-port RJ45 | 8-port RJ45 | |
Power Supply | External or built-in | External | External | External | External | |
Dimension | 26x70x95 | 26*70*95 | 30*110*140 | 30*110*140 | 30x110x140 | |
(L×W×H) (mm) | (with external power) | (with external power) | (with external power) | (with external power) | (with external power) | |
UTP Rate | 10/100Mbps | |||||
Fiber Port | Simplex SC, ST, FC available | |||||
Fiber Rate | 100Mbps | |||||
Fiber Wavelength | 1310/1550nm | |||||
Fiber Mode | Single-mode | |||||
Distance | 20km | |||||
LED Indicator | TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX. | |||||
Working Temperature | -20~75°C | |||||
Relative Humidity | 5%~90% |
4.Applications:
1. Extend Ethernet Network Distances
2. It use the 10/100BASE-T to 10BASE-FL speed setting (back-to-back) to extend the distance between two 10/100BASE-T devices up to 100km. using single mode fiber without a repeater.
3. Extend Fast Ethernet Network Distances
It use the 100/1000BASE-TX to 100/1000BASE-FX setting to extend the distance between any two 100/1000BASE-TX devices up to
100km. using single mode fiber. Or interface directly with a 100/1000BASE-FX compliant port on any device to provide a
100/1000 BASE-TX port interface.
transceiver interface | sc,st,lc |
port | 1 fiber + 1 utp, 1 fiber +2 utp , 1 fiber + 4 utp,1 fiber + 8 utp,2 fiber + 3 utp,2 fiber + 4 utp,2 fiber + 8 utp,2 fiber +16/24utp... |
speed | 155M 1.25G,10G |
Distance | 0.5km,20km,40km,60km,80km,100km,120km |
