WY-P1

Product Details

Description:

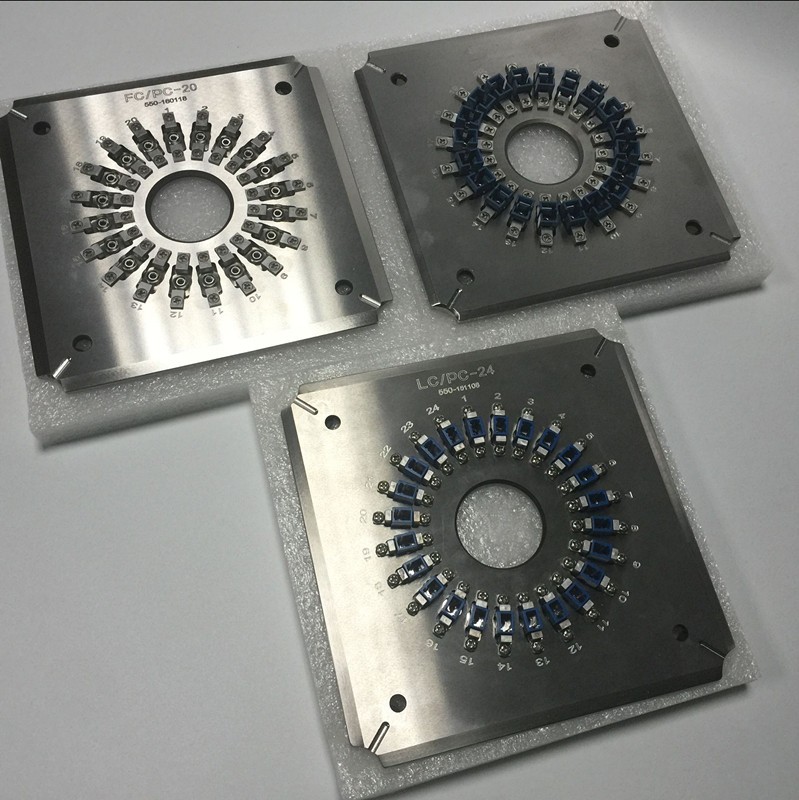

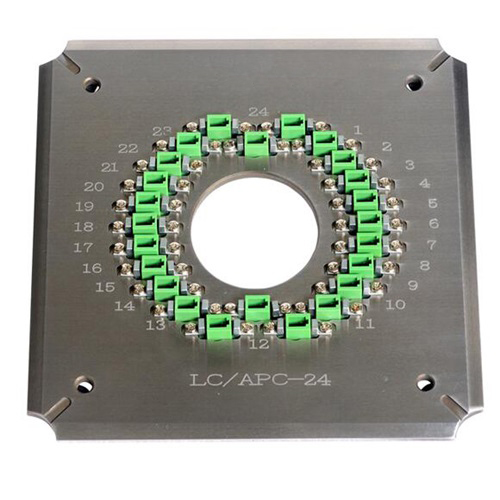

Fiber polishing fixture using high quality steel with heated treat, the hardened steel providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC,and E2000, etc, and also according to the customer request.

The fiber polishing fixture pass rate with Interference> = 98% .This fiber polishing fixture is high stability and good surface quality.

Features:

1.Application to SC/PC connector polishing.
2.High efficiency, and polishing 32 ferrules in one cycle.
3.Holders on jig replacable, effeciency for polishing cost saving.
4.The geometry dimensions of polished ferrules comply with IEC standards.
5.The first pass yield for end face quality reach 100%.

Specifications:

Model No: WY-P1

1.Machine Size 174*174*26
2.Net Weight 1.2kg
3.Max capactiy 32 connectors a time
4.Application SC/PC connector polishing
5.Suitable Machine SEIKOH GIKEN SFP-550 Serials
6.Materials harden stainless steel S136
