WY-P1

Product Details

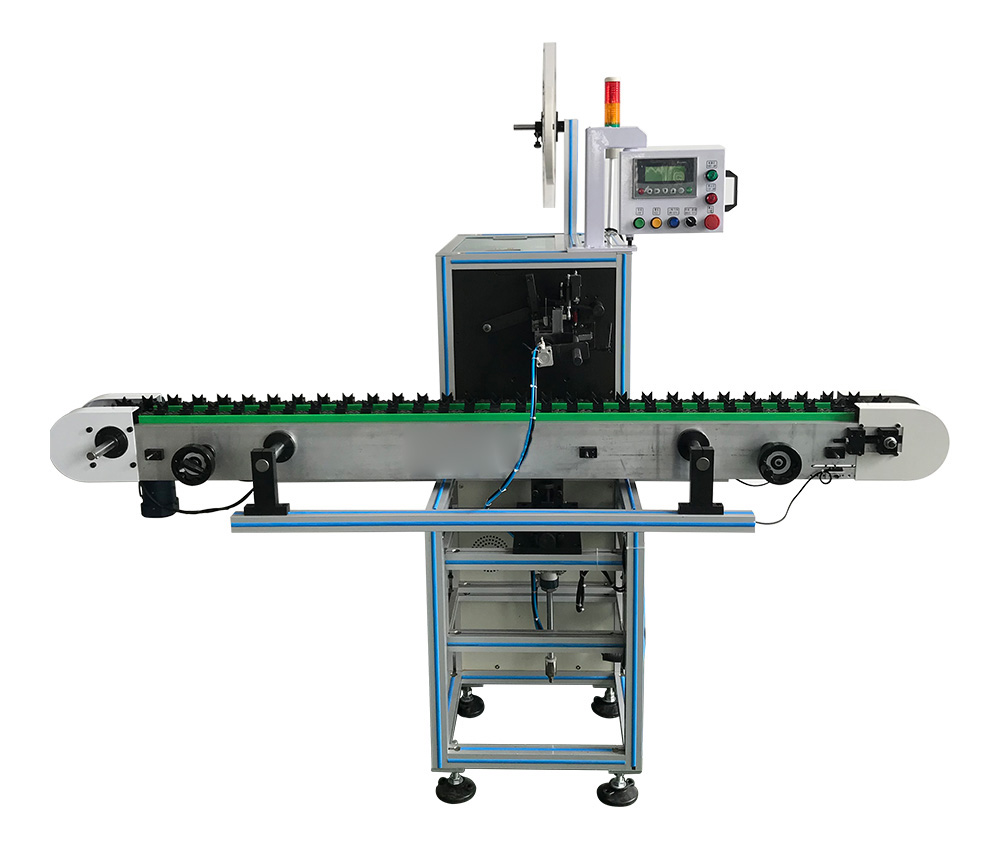

Description: Paper insertion Machine Model No.:WY-P1

1. Performance and characteristics

V This machine is used for automatic insertion of insulating paper at the bottom of various series motor rotor (straight groove, diagonal groove).

V equipment stable performance, high production efficiency, to the international level of similar models.

V Quick tooling replacement, easy to operate, convenient and reliable: complete the replacement of the full set of tooling within 15 minutes.

V Fully automatic rotor feeding, paper insertion, blanking.

V PLC logic control, good man-machine interface, setting operation is simple, convenient and fast.

V Configuration of different lines to complete unmanned automated production equipment.

2.Technical parameters and indicators:

1.Minimum inner diameter of stator: ф30MM

2.Maximum outer diameter of stator: ф90MM

3.Length of insulating paper:15-80MM

4.Width of insulating paper:≦150MM

5.The stator slot number: 2 slot

6. Input Voltage: 220V 50/60Hz

7. Input Power: 1KW

8.working air pressure:0.4-0.6MPa

9. Dimension: 1.45x0.6x1.65m

10.Machine Weight: 300kg

11.Efficiency:≦8S

12.One person operates one

13. Change Over Time:30Minutes

14.Feeding accuracy: within 0.5
