WY-SM

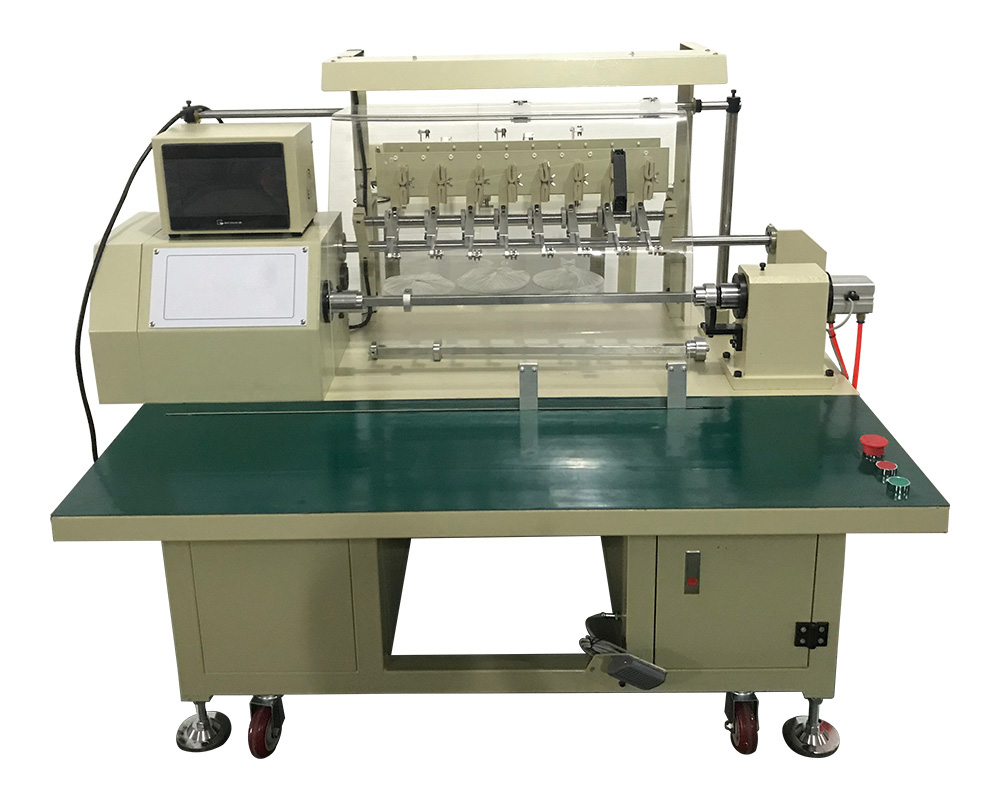

Description: Stator Coil Winding Machine Model No.: WY-SM

1. Specification

Spindle speed	High-speed gear: 0-3200rpm
Spindle speed	Low-speed gear: 0-1600rpm
Adapt to the diameter	0.05-0.8mm
tactical diameter	0-160mm
Line schedule	0-180mm
Layout speed	Between 0-33mm / sec
Spindle motor	750W 3-phase AC motor + 750W frequency converter (large wire diameter is many Cable head is equipped with high- power motor as required)
Layout motor	Two-phase hybrid stepping motor, with a static moment of 2N.M
source	Single-phase 220V ± 10% 50HZ
The power of the machine	900W
Machine size	Length: 1350mm width: 850mm height: 1200mm
machine weight	400Kg

2. Description of the main components

frequency transformer	Domestic kovo
Spindle motor	Domestic Zhaoqing
Layout motor	Domestic Step family, 2N. M Static moment, for a long time to work without heat
controller	Independent research and development, 32-bit AR M control chip, all English LCD Display, you can generate all the step orders with one key, and the parameter setting is simple.
lead screw	Taiwan TBI, Grade C accuracy
Type V belt	Hanshandong, Japan
bearing	Japan NSK
Spindle row line box body	Cast iron box body, independent research and development
Working table board	Cast iron platform plate, independent research and development
Other mechanical components	independent research and development
