WY-SP1

Product Details

Product Description

The advanced core to core fiber profile alignment system(PAS)
X/Y axes were displayed meanwhile, Magnification up to 304 times
7 Sec. splice time , 18 Sec. tube-heat time
Hig High-resolution true color 4.3 inch LCD display
Four display modes, fiber core visible
Store 4000 groups of splice results
Four display modes, fiber core visible
USB interface - for updates + result transfers
Built-in high capacity battery, support 300 times splicing and heating, to meet one days' work
Long Electrode Lifetime, up to 4000 times
Three Splicing modes: auto, half-auto, manual
Close shield splice automatically, Close heater lid heat automatically
One year Warranty

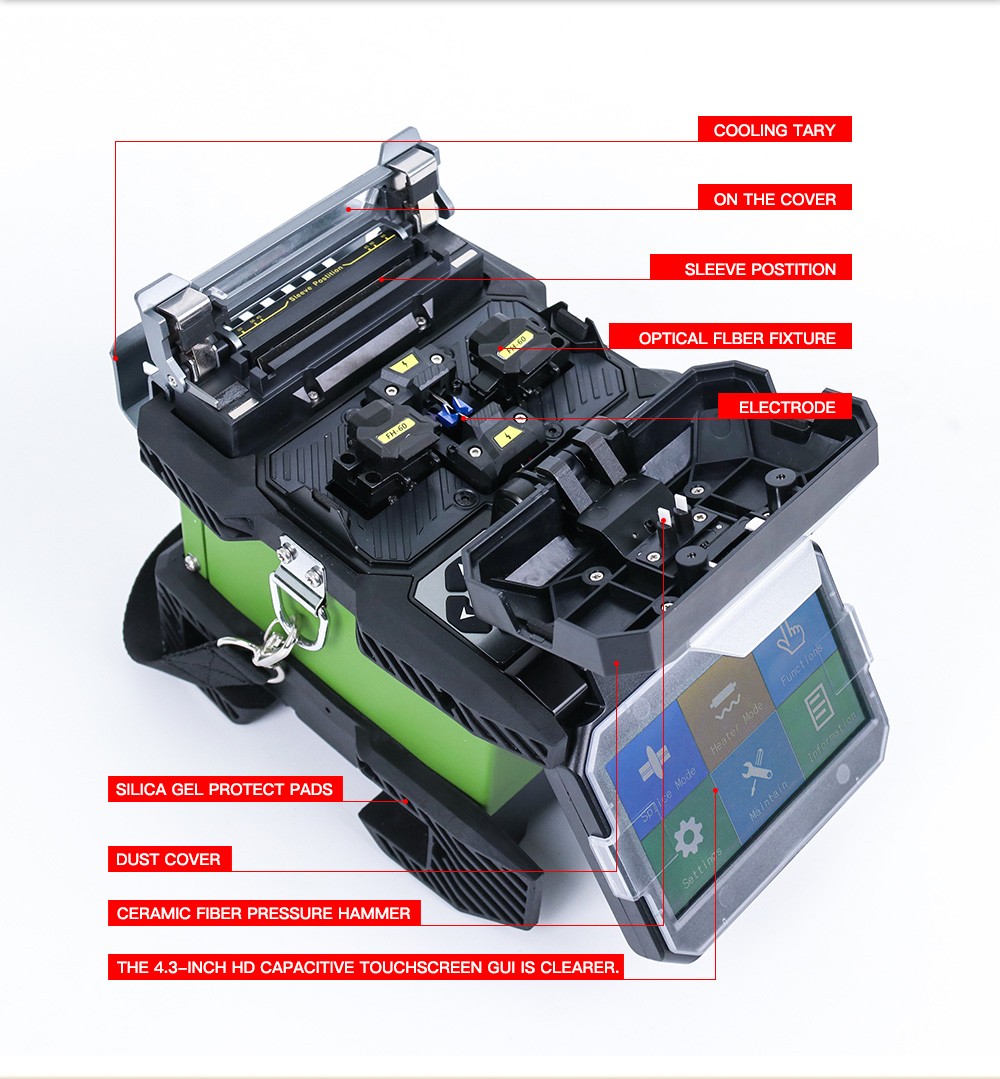

Image Details:

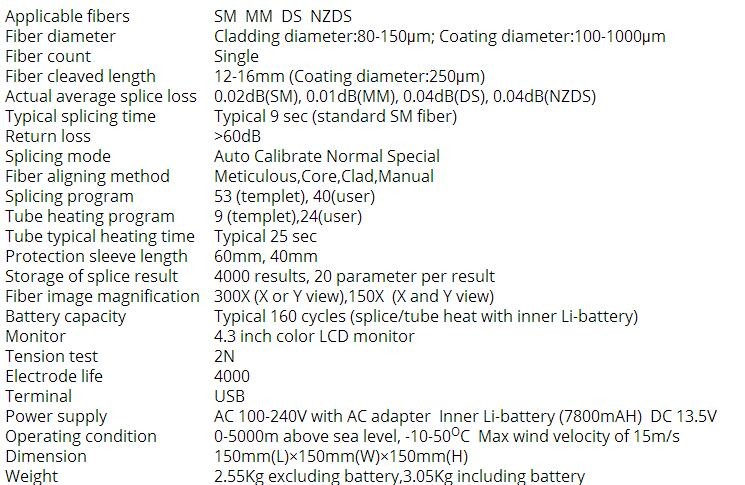

Specifications:
