WY-SW

Product Details

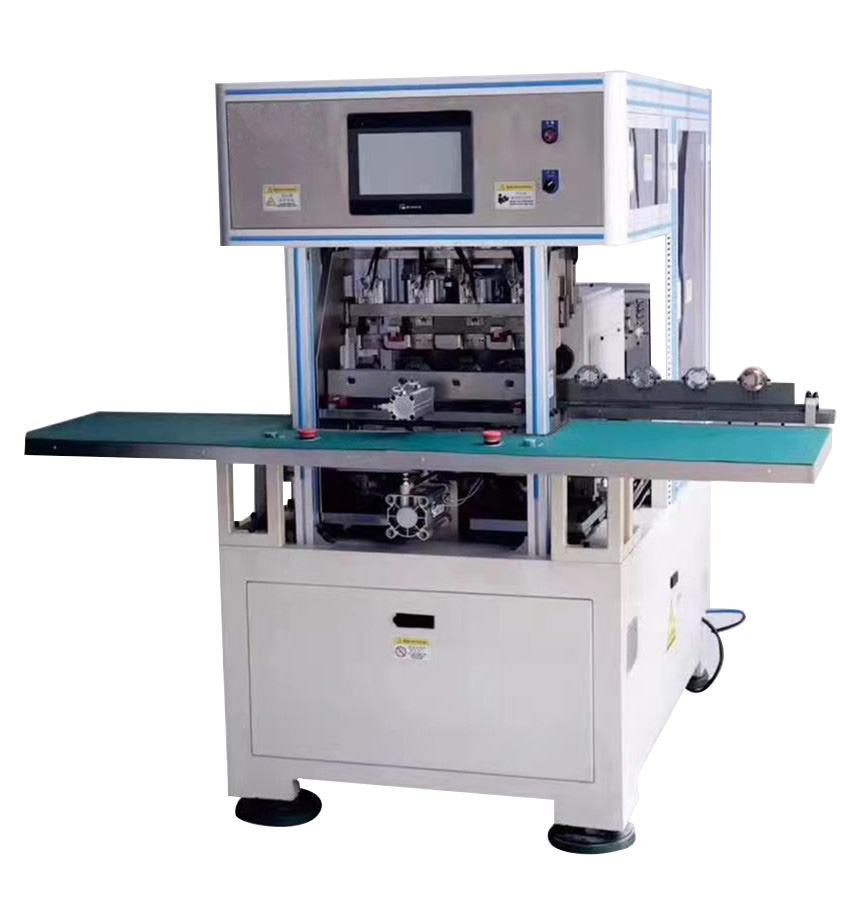

Description: Double Stations Stator Winding  Machine Model No.: WY-SW

1. Performance and characteristics

V This machine is used for winding two pole stator.

V Cast iron frame, stable precision, good shock absorption.

V The double fork rod moves synchronously to automatically complete the winding of the two stators.

V Automatically complete the feeding, clamping, clamping die, winding, clipping line.

V Automatic clamping die, with 4 stator stations, moving the loading and unloading around, when 2 stations in winding, the other 2 stations can be loading and unloading.

V stroke and swing Angle can be adjusted in a certain range (mechanical adjustment) in order to meet the requirements of different stators.

2. Technical parameters:

1, machine dimensions (LXWXH) : 1600*1550*1830mm (excluding wire frame)

2100*1250*1830mm (including cable rack);

2. Machine weight: about 1500KG;

3, working voltage: three-phase AC380V ±10%, AC (50/60Hz);

4, motor power: 4.5KW;

5, working pressure: 0.4~ 0.7mpa;

6, speed range: 0-500N /min;

7. Lubrication form: continuous lubrication of oiler;

8, applicable thread diameter: ∮0.25mm~ 0.80mm;

9, applicable pole number: 2 poles;

10, applicable stacking thickness: 25-60mm (special can be customized);

11, stator inner diameter: ∮30~∮50mm;

12, stator outer diameter: ∮50-∮90mm;

13, production efficiency: calculated by the winding wire diameter of 0.32, the number of turns 300, the beat is about 55S/2 (double station);
