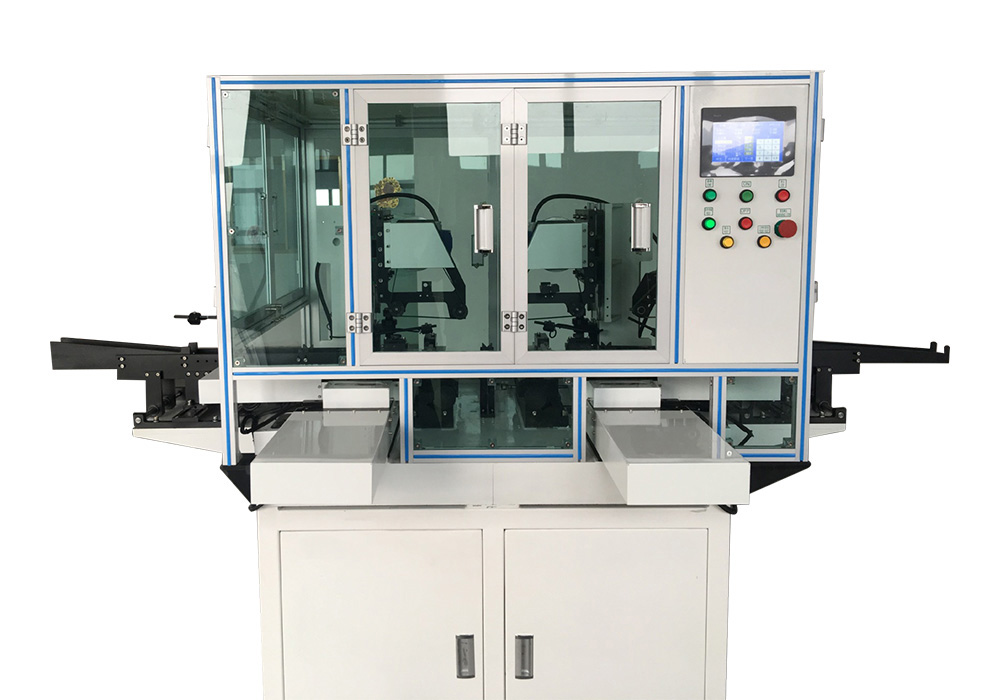

Description: Turning Machine Model No.:WY-TM

1. Performance and characteristics

V This machine is used for precision turning equipment of outer circle and end face of various micro-motor commutator and outer circle of iron core.

V Automatic, point, two working states, easy to debug.

V Feeding, clamping, turning, cutting and burring are fully automatic.

V Touch screen button, beautiful and easy to operate.

V Diamond V frame durable, stable precision.

V Servo drive high precision moving parts, turning accuracy, turning quality is stable, can be many times.

V X and Y axis adopt imported brand (THK) high precision ball screw drive.

V Good dust absorption effect, with the machine with turning knife dust absorption rate up to 95%.

V Equipment and front and rear machine connection, can realize automatic unmanned operation.

2. Technical parameters:

1 Machine dimensions (LXWXH) : 1900*850*1600mm;

2 Machine weight: about 800KG;

3 Working voltage: three-phase AC380V ±10% 50/60Hz;

4 Motor power: 5.5KW transformer: 1.5KW;

5 Working pressure: 0.4~ 0.7mpa;

6 Armature outer diameter: ∮20mm~∮60mm (special can be customized);

7 Armature shaft diameter: ∮4.5mm~ 19mm;

8 Commutator outer diameter: ∮15mm-∮40mm;

9 Cutting length: ≤40mm

10 Turning accuracy: coaxiality ≤0.003mm; Interslice beating ≤0.002mm; Roughness ≤Ra0.6;

11 Armature effective shaft length: ≤270mm;

12 Production efficiency: ≤10 seconds/piece (turning 2 knives);

13 Special requirements can be determined;
