WY-V11

Product Details

Product Description

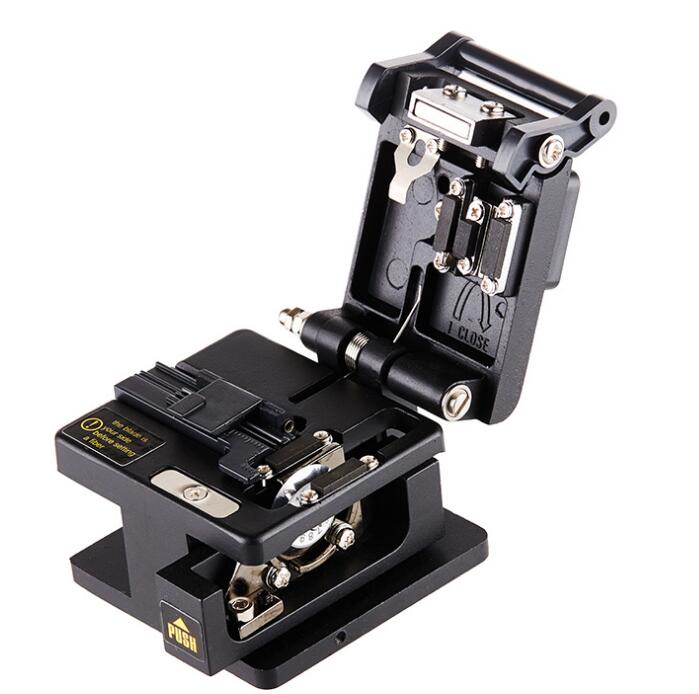

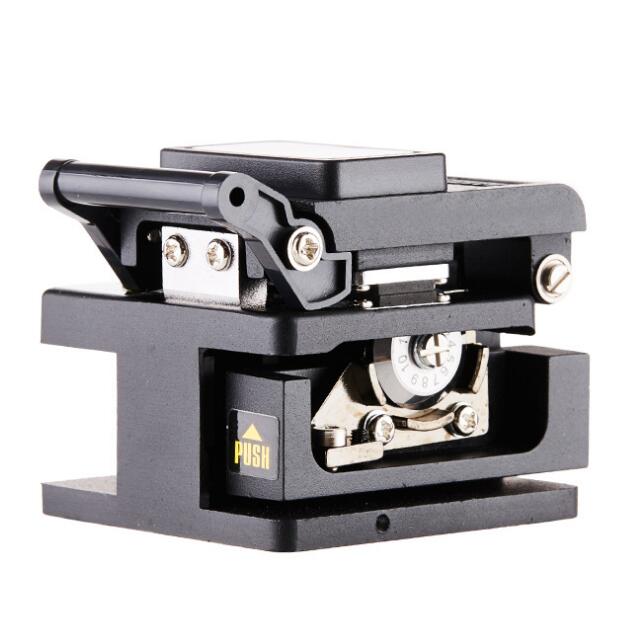

WY-V11 Fiber Cutter (All-Metal Material), Quality Assurance, Automatic Rebound, All-Metal Material, Special for Cold Connection
Technical Parameters: Special for Cold Connection
Fiber Cutter Tool Suitable for Precision Single-Core Optical Fiber Cutting,
This Knife Is Not Only Suitable for 250μm Coated Optical Fiber
Also Suitable for 900μm Coated Optical Fiber.
The Cutting Is More Accurate without Special Skills.
Cut Length: 0.9mm Fiber 10-16mm;0.25mm Fiber 9-16mm
Optical Fiber Package Diameter: 125μm
Coated outside Diameter: 0.25 & 0.9mm
Size: 63W × 76D × 63H(mm)
Fuselage Description:
Subject: Aluminum Casting and Die Casting Process
Blade: Tungsten Steel Blade 24 Points
Fixture: Three-in-One Multi-Functional Fiber Clamp

Product Details

Model No.:WY-V11
