WY-V13
Product Details
Product Description
Advatages:
The Surface Of Blade Body Is Treated By Abrasion Material, Not Easily Scratched.
Four Ultra-High Rebound Coefficient Of The Fiber Mat (International Initiative)
Cleaving Type: Single Quartz Fiber
Applicable Coating Diameter: 0.25 Mm ~ 0.9 Mm
Applicable Cladding Diameter: 125um
Cleave Fiber Length: 9~16(0.25),
Cleave Angle: 0.5°
Blade Life: 16 Surface × 2000 Times / Face = 32000 Times (Each Face Directly Cleave 2000 Times, Saving The Trouble Of Adjusting Blade Height).
Specification:
| Model No. | WY-V13(Fiber Clever SKL-8A) |
| Applicable fibers | Silica optical fiber |
| Bare fiber diameter | 125µm |
| Cleaving angle | 0.5 degrees at single fiber |
| Blade positions | 3 height and 16 rotating positions |
| Blade life | 48,000 fibers (1,000 fibers x 3 height x 16 positions) |

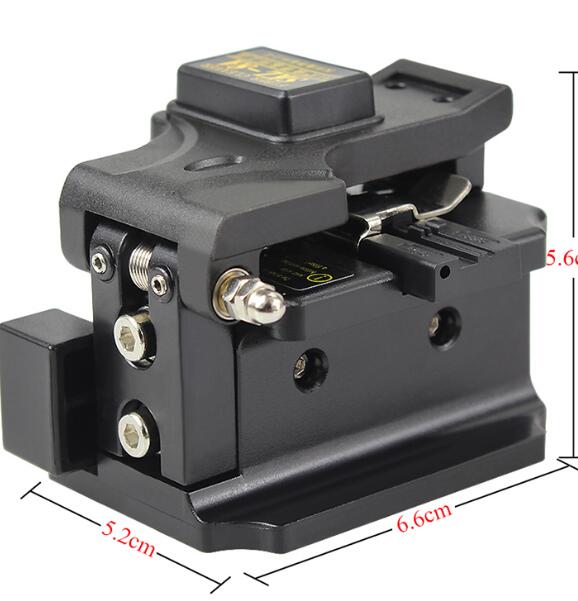

| Dimensions | 52W × 66D × 56H (mm) |
| Weight | 350g |

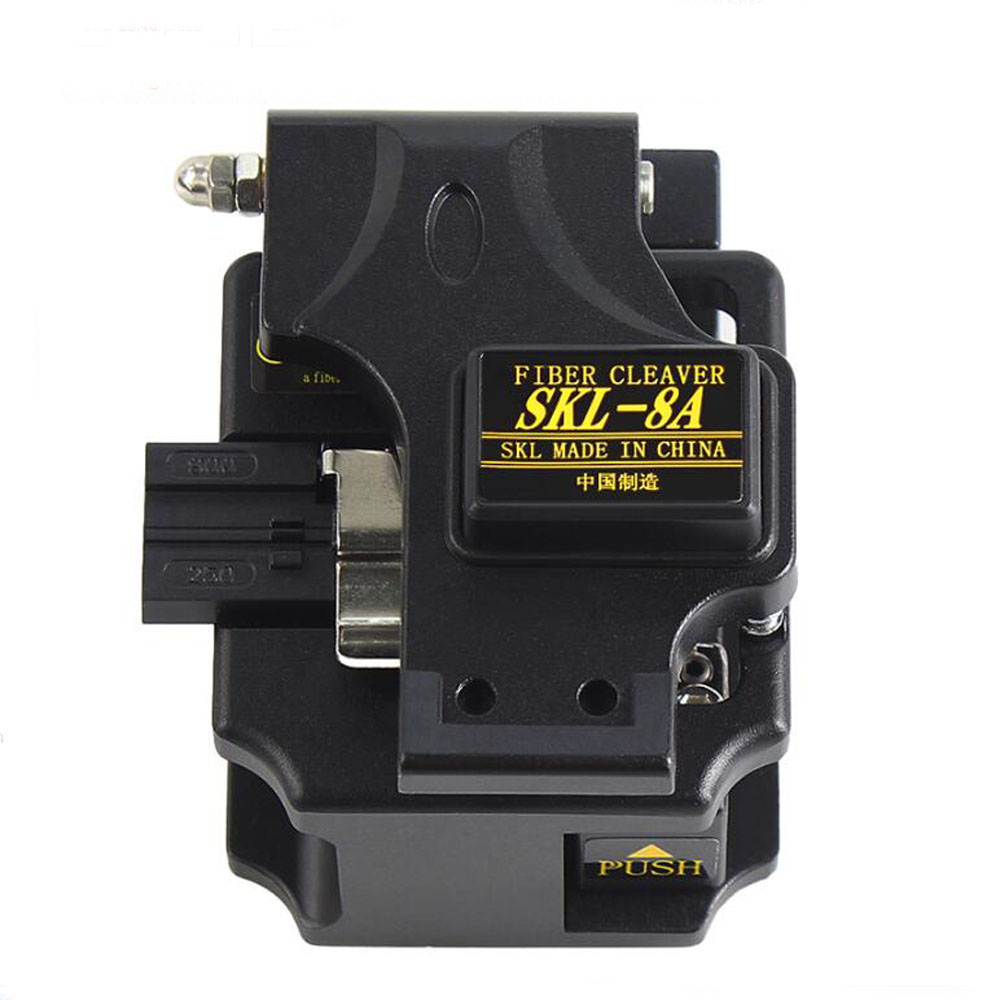

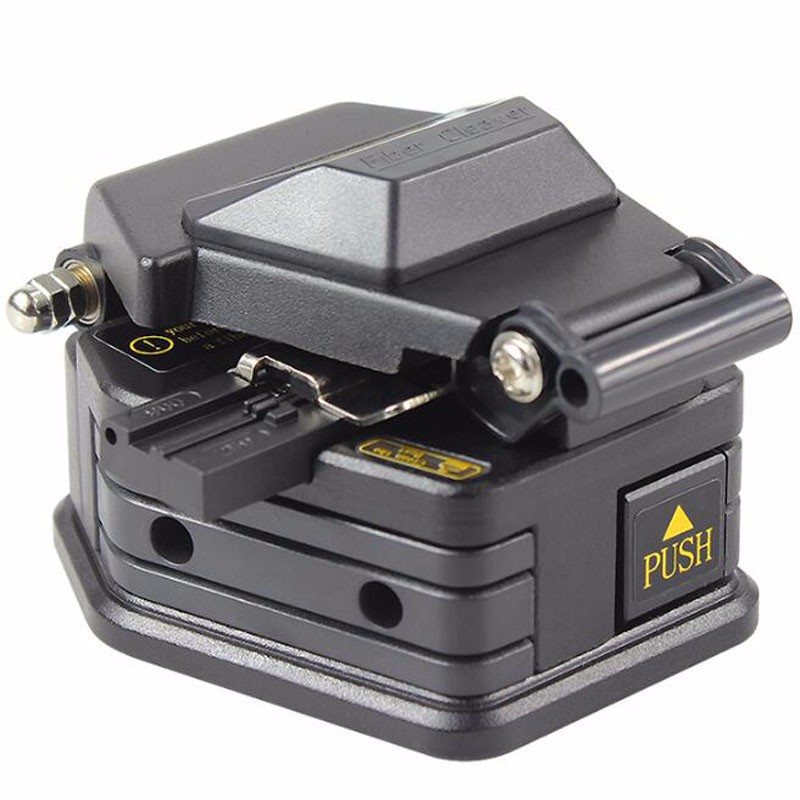

Detailed Image:
