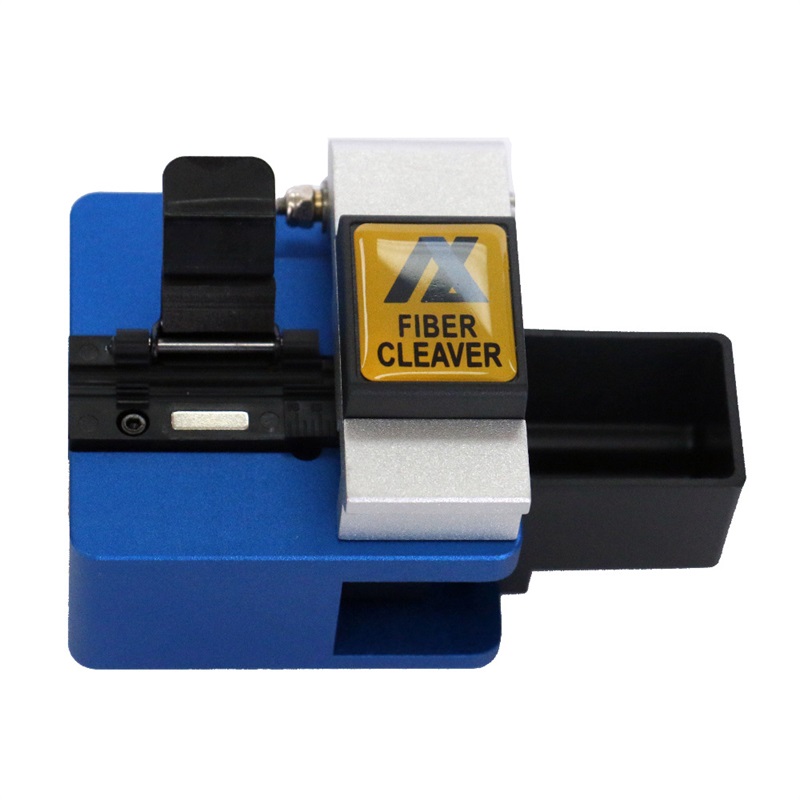

WY-V14

Product Details

Product Description

Applicable fiber: single core quartz fiber
Cutting bare fiber diameter: 125μm
Fiber coating diameter: 250~900μm
Cutting angle: less than 0.5° (single core fiber)
Cutting length: 13mm

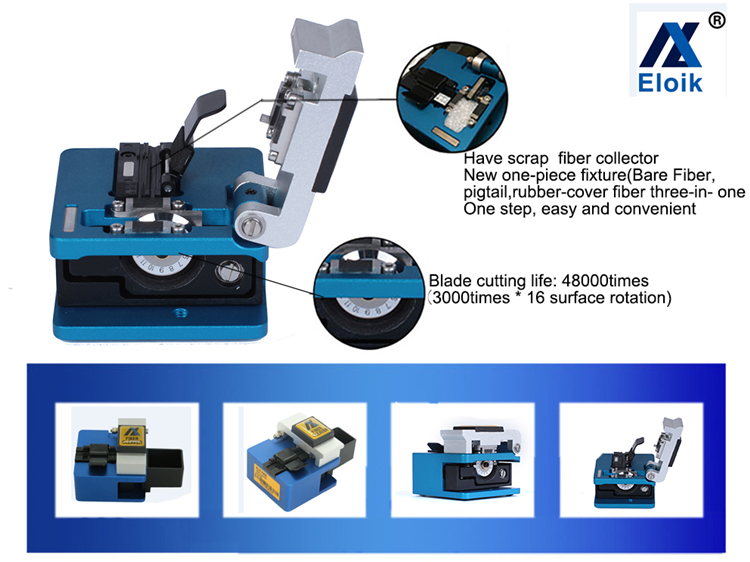

Blade cutting life: 25,00 times *16 surface rotation
It adopts imported ultra-fine grain hard tungsten steel alloy as raw material and is produced by international excellent
processing technology. The surface finish is mirror-like, the quality is stable and reliable.
The 100x microscope magnifies the blade to a complete curve without unevenness.
The edge of the blade is 0.003mm under a 200x microscope:
Cutter size / weight: 70L × 54W × 58H (mm) / 238g (150g, length 70 * 54 * 52 on the machine)

Specification:

Model No.:WY-V14
