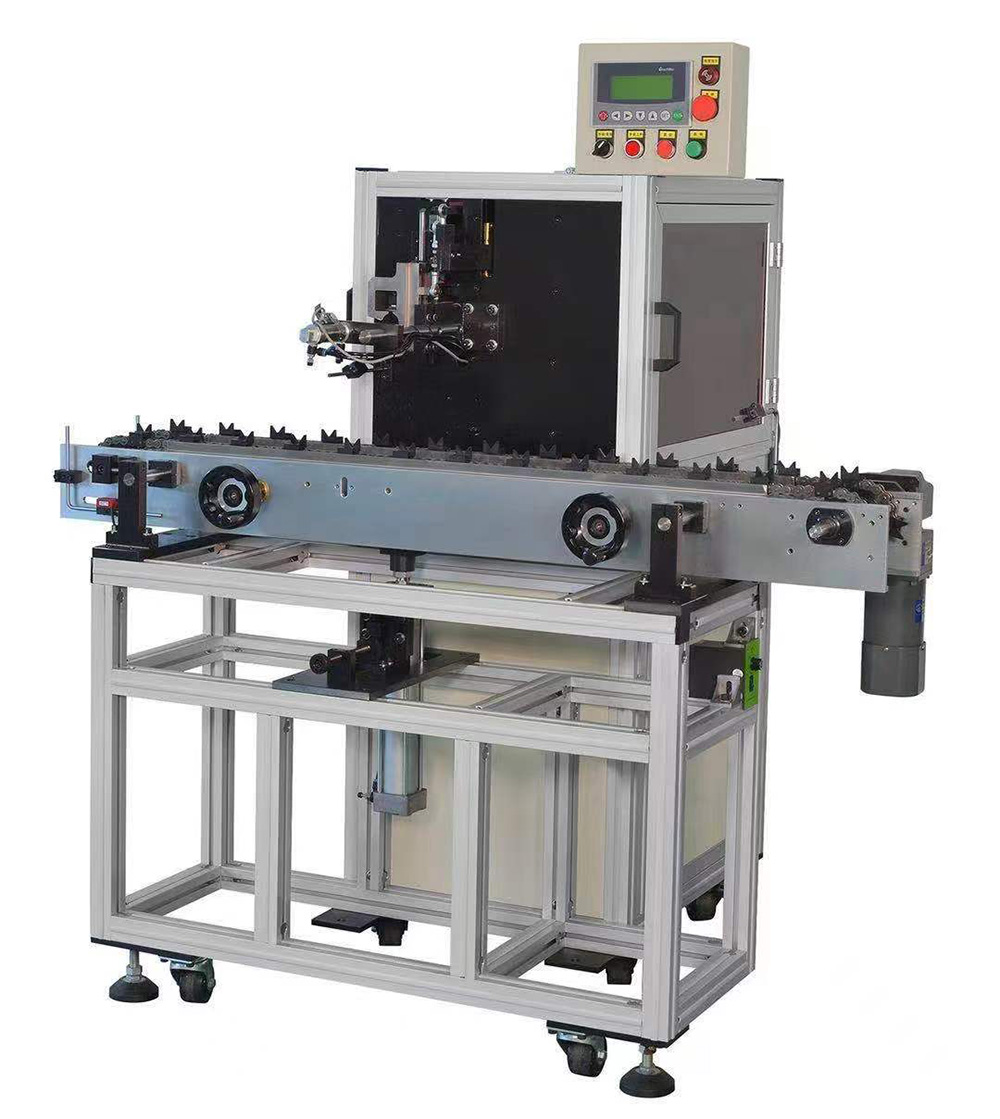

Description: Wedge Insertion Machine Model No.:WY-P1

1. Performance and characteristics

V This machine is used for various series motor rotor (chute, straight groove) groove top slot wedge automatic insertion equipment.

V equipment stable performance, high production efficiency, to the international level of similar models.

V Quick tooling replacement, easy to operate, convenient and reliable: complete the replacement of the full set of tooling within 15 minutes.

V Fully automatic rotor feeding, inserting, cutting.

V PLC logic control, good man-machine interface, setting operation is simple, convenient and fast.

Configuration of different lines to complete the automatic production equipment unmanned operation.

2. Technical parameters:

1 Machine dimensions (LXWXH) : 1300*505*1300mm;

1300*2300*1300mm (including feeding rack);

2 Machine weight: about 400KG;

3 Working voltage: 220V ±10% AC (50/60Hz);

4, Motor power: 1.0KW power: 1HP inverter: 1.5KW;

5 Working pressure: 0.4~ 0.7mpa;

6 Armature outer diameter: ∮20mm~∮60mm (special can be customized);

7 Armature stack thickness: 12~80mm (special can be customized) (insulation sheet length: 15~85mm adjustable);

8 Armature slot number: 8~36 slots (even slot);

9 Insert accuracy: ±0.15mm;

10 Feeding efficiency: 0.4 seconds/slot, 12 slot rotor only 7 seconds (including loading and unloading time);

11 The effective shaft length of the rotor: 200mm below (the distance between the end face of the iron core and the shaft end is less than 110, special can be customized);

12 Groove wedge: all kinds of groove wedge material used in the market at present, thickness 0.35~1.0mm, width 3-8mm;

13 Special requirements can be determined;
