WY-YL1600 Computer Type

Product Details

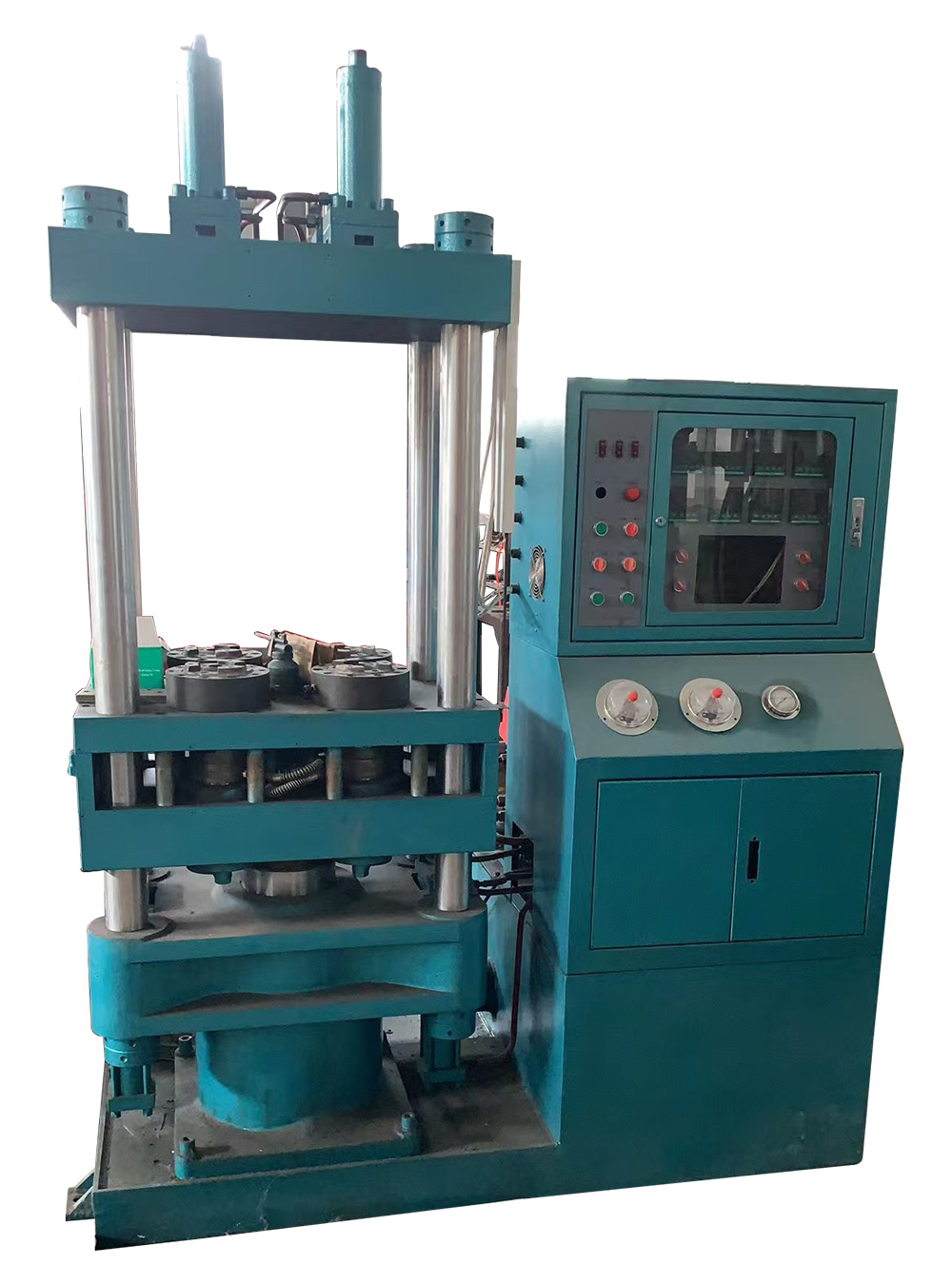

Description: Four - mode armature insulation primary molding machine

Model No.:WY-1600

Suitable for all kinds of electric tools, micro motors, vacuum cleaners and other motor armature shaft insulation one-time molding, forming fast, easy to operate

1. Four mode form, four armatures can be formed at one time

2. Fast opening and closing mold, high production efficiency

3. 3.Equipped with Hafu mold, the concentricity of the rotor in one forming is high

4. Advanced PLC programmable control, touch screen man-machine dialogue, smooth and reliable work

Main Technical Parameters

Mould Clamping Force (KN)                   4X150

Tight piece of force (KN)                         4X50

Injection force(KN)                                  4x50

Maximum working oil pressure(Mpa)       21

Maximum stroke of die closing(mm)       300

The electric power(KW)                          4X2.2

Motor Power (KW)                                  5.5
